DS45SIDE Side Drop Slide

Description

FEATURES:

• Compact size
• Easy install
• Lock-in and lock-out safety system
• Powder-coated steel frame construction
• Stainless steel and blue anodised aluminium fittings
• Travel lock and key
• Anodised blue faceplate

INCLUDES:

• All fixing and tie-down straps
• MSA 4X4’s Lifetime Guarantee

NOTE:

• MSA 4X4 Fridge Barrier is available for this model

LIGHTER…STRONGER…SAFER…SMARTER

This model is designed for specific applications where the Drop Slideâ„¢ is better suited sideways, as the vehicle does not have enough depth for a standard Drop Slideâ„¢ to be installed.

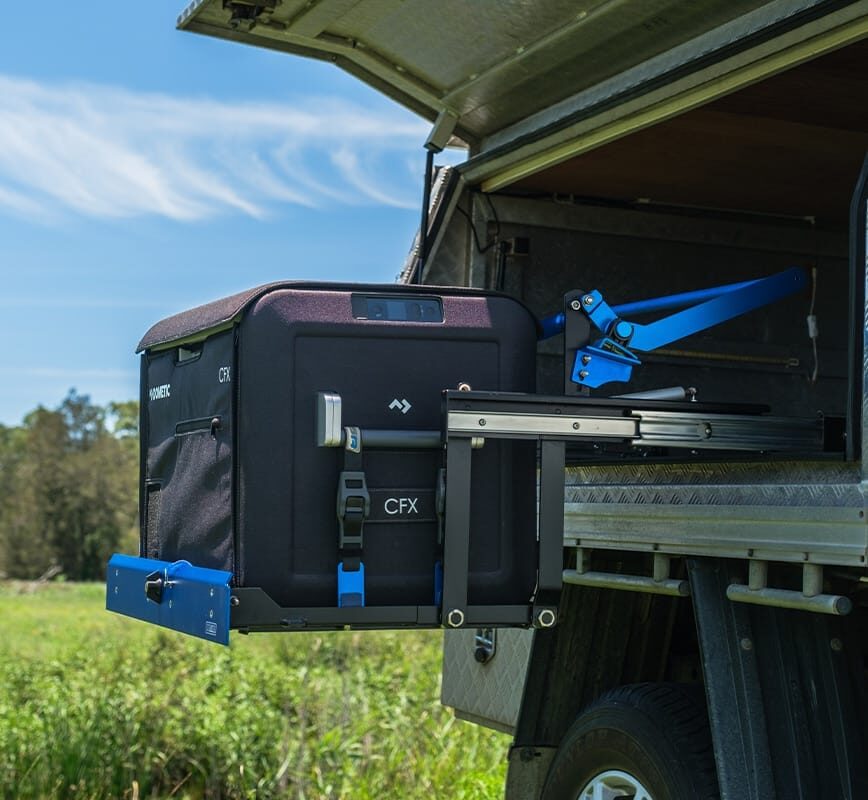

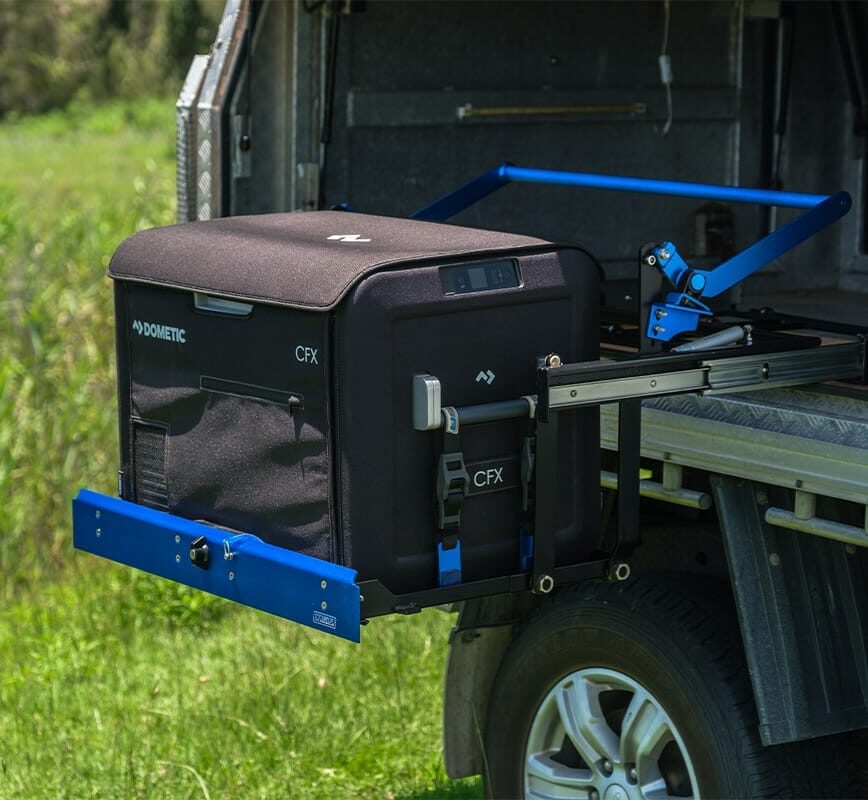

The MSA 4X4 Patented Side Drop SlideTM is the perfect addition to a 4WD set-up. Offering unrestricted access at a safe and convenient level to a fridge, toolbox or generator. The Side Drop SlideTM includes a slimline handle allowing for the Slide to lower 30 centimetres while extending away from the vehicle. The platform remains perfectly horizontal and avoids any contact with the vehicle.

A blue anodised faceplate creates a tough, durable and easily recognisable feature, that is unique to all MSA 4X4 Slides. The frame is constructed from powder-coated steel and the compact design maximises storage space within the vehicle. The MSA 4X4 Side Drop Slideâ„¢ is engineered to be easily installed and the pre-drilled tray holes provide anchor points for most popular fridges. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.

Code	DS45SIDE
Weight	32kg
Fridge Tray1	460×730
Slide Length Closed2	530+20
Slide Length Open3	1170+20
Overall Width4	820+20
Handle Width5	815
Drop6	300
Mount to Base	35
Max Set Back	125
Gas Strut	80N
Freight Dimensions	860×690×170
Freight Weight	37kg
(all measurements displayed are in mm)
