DUAL INPUT 40A IN-VEHICLE DC BATTERY CHARGER

Description

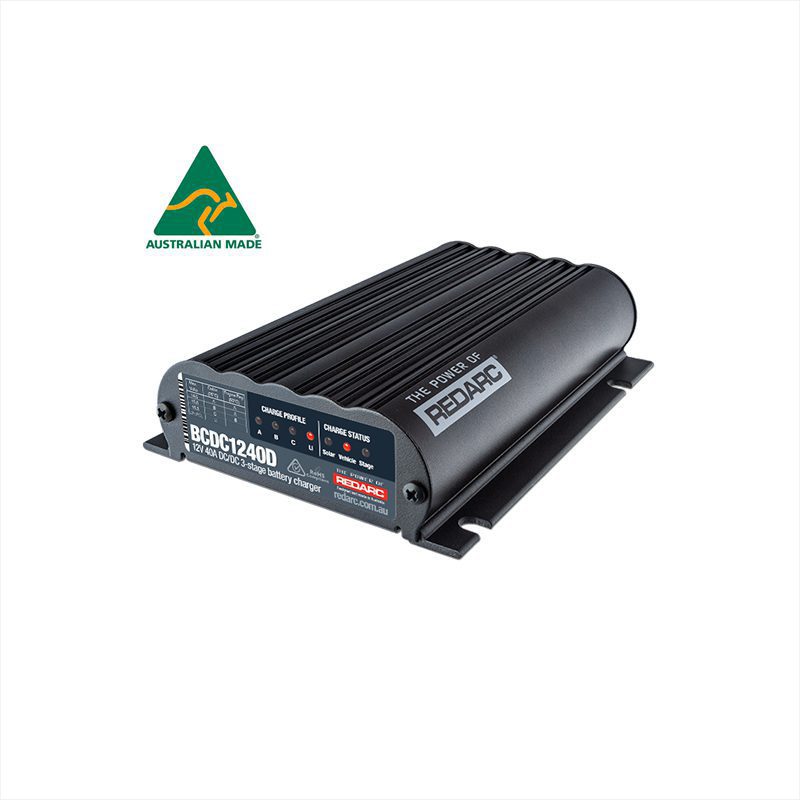

The REDARC BCDC1240D In-vehicle Battery Charger is a 12V 40A In-vehicle DC to DC battery charger. It is the latest variant of the award-winning BCDC Dual range and features REDARC’s Smart Start technology.
Featuring a Maximum Power Point Tracking (MPPT) solar regulator, the BCDC1240D will charge from both solar and the alternator simultaneously. With built-in ‘Green Power Priority’ it will select solar charging first, meaning less load on the alternator.
Suitable for 12 or 24-volt vehicle systems, the unit will also work with either standard or variable/smart alternators.
The BCDC1240D also comes with patented charging profiles, including a lithium charging profile perfect for pairing with a REDARC Lithium Battery. The ‘Dual’ input range will continue to charge all other types of batteries including AGM, GEL, standard lead acid and calcium.
As a guide, the BCDC1240D is used for battery bank sizes over 200AH. For smaller batteries of 75-200AH REDARC recommends the BCDC1225D.

Proven and Tested
The award-winning technology in the BCDC has been independently verified and tested to ensure battery life is maximised, charging your battery to a proven 100%.
Built in Australia and tested for our unique conditions, the DC to DC battery charger will work in the extreme heat of the Simpson Desert, up to 80°C and can handle deep water crossings at Cape York – water, dust and vibration are no match for this charger.
If you’re heading out into the bush and want to get there and back again safely – you can trust REDARC.

Features

• Separate DC and solar charging inputs
• Maximises the performance and life of your auxiliary battery
• Simultaneous DC and solar charging with Green Power Priority
• Suits 12V/24V standard and variable voltage/smart alternators
• Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO₄) batteries

Specification:

Input (Operating) Voltage 9 – 32VDC
Output System Voltage 12VDC
Maximum Charging Voltage 15.3V
Output Current Rating (Cont.) 40A
Input Fuse Rating 60A
Output Fuse Rating 60A
Standby Current Draw <100mA
Output Power 600W
Width (mm) 120
Height (mm) 37
Length (mm) 165
Weight (kg) 1
Warranty 2 Years

Mounting Brackets
In addition to the use of quality fuse kits, REDARC offer a range of vehicle-specific mounting brackets for our BCDC DC-DC Charger range. The 304 stainless steel bracket allows installation into the front of the vehicle for cooler airflow, ensuring optimal performance. They have been designed to fit existing mounting points in the vehicle.

Not sure what dual battery system is best for your vehicle? Let Shaun Whale explain more.
