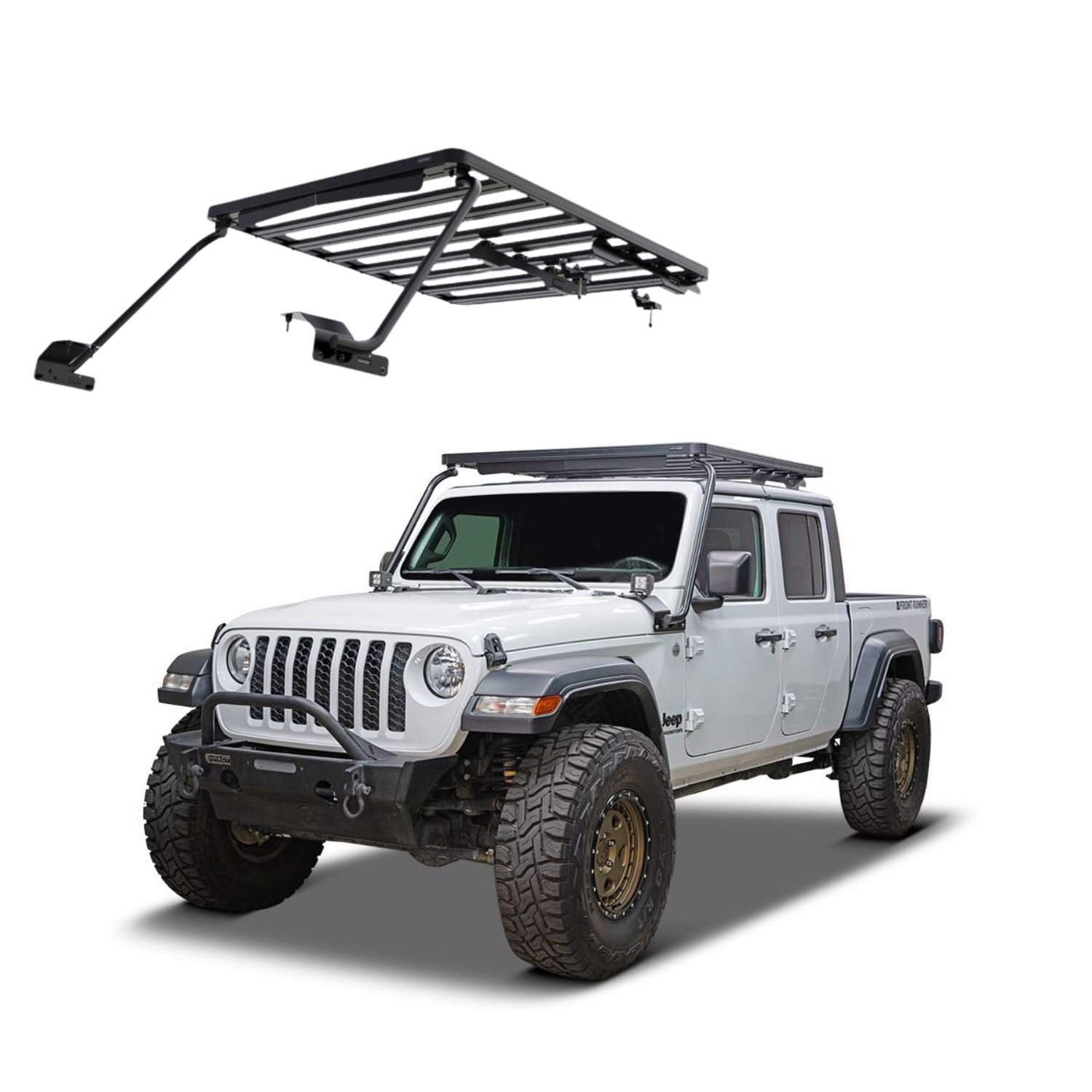

GLADIATOR JT (2020-CURRENT) EXTREME ROOF RACK KIT – KRJG005T

Description

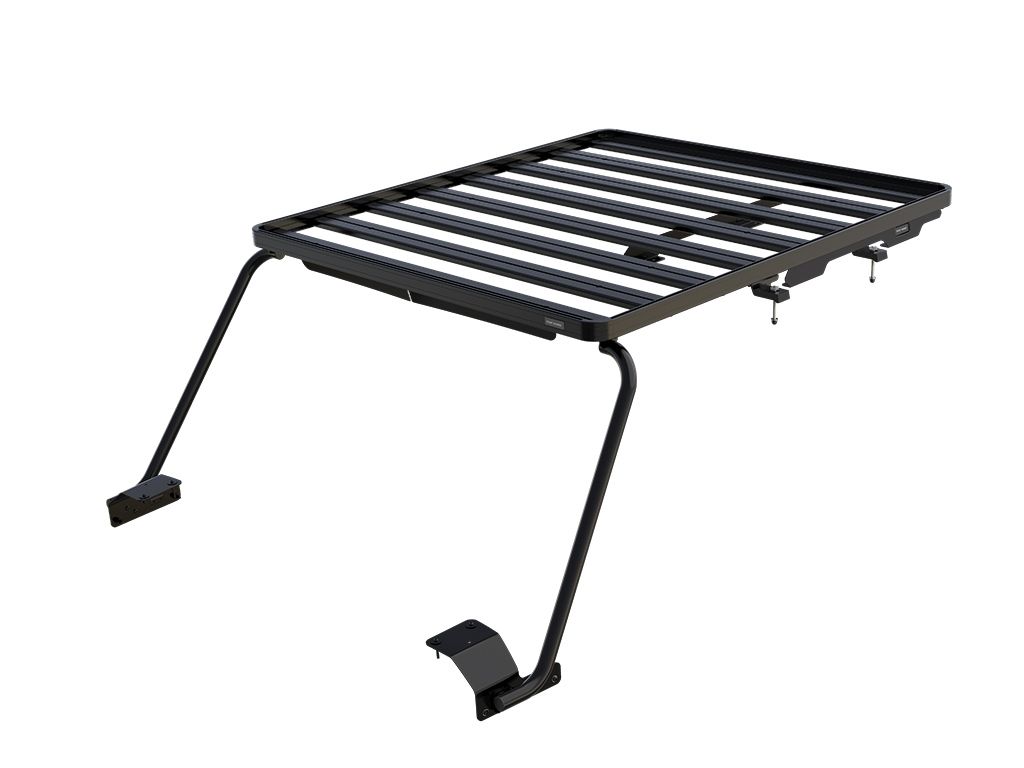

This Slimline II rack kit contains all the components needed to mount the Slimline II cargo carrying rack to a Jeep Gladiator JT including the Slimline II Tray (1425mm x 1560mm), the Jeep Extreme Mounting System, and a Wind Deflector. Drilling is required for installation.

This rugged, sophisticated, high-performance, nearly indestructible rack system allows you to quickly remove the Freedom Panels and works with the hardtop roof on or with no roof at all.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

For further information on installation, please see the fitment instructions in the INSTALL tab.

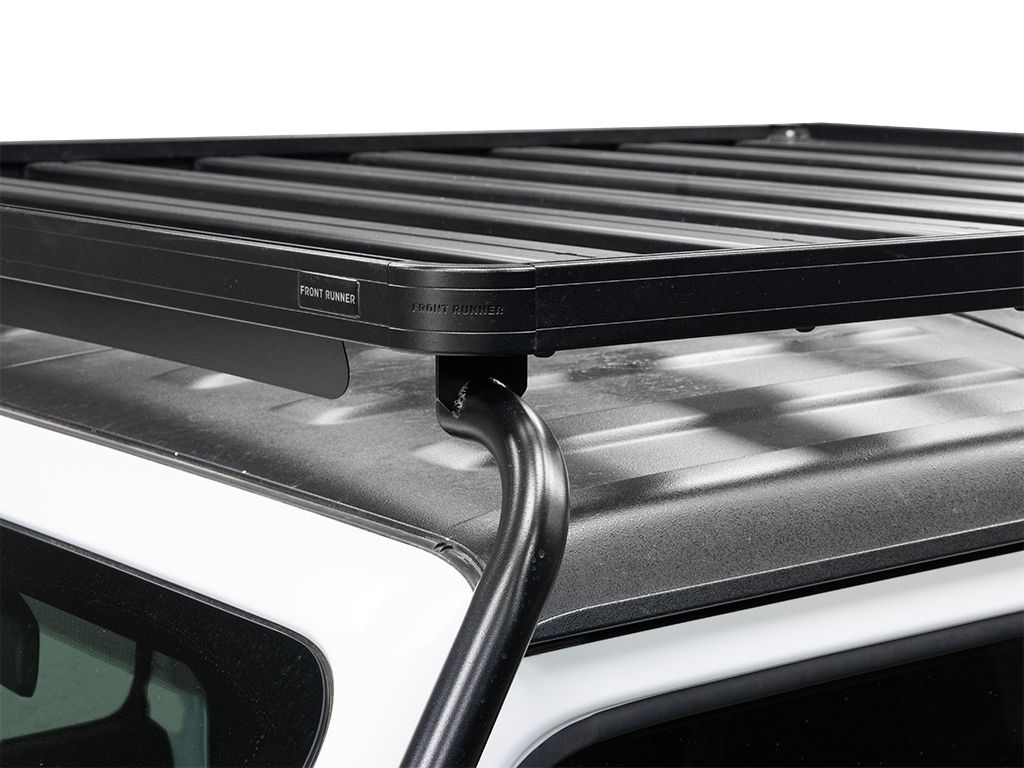

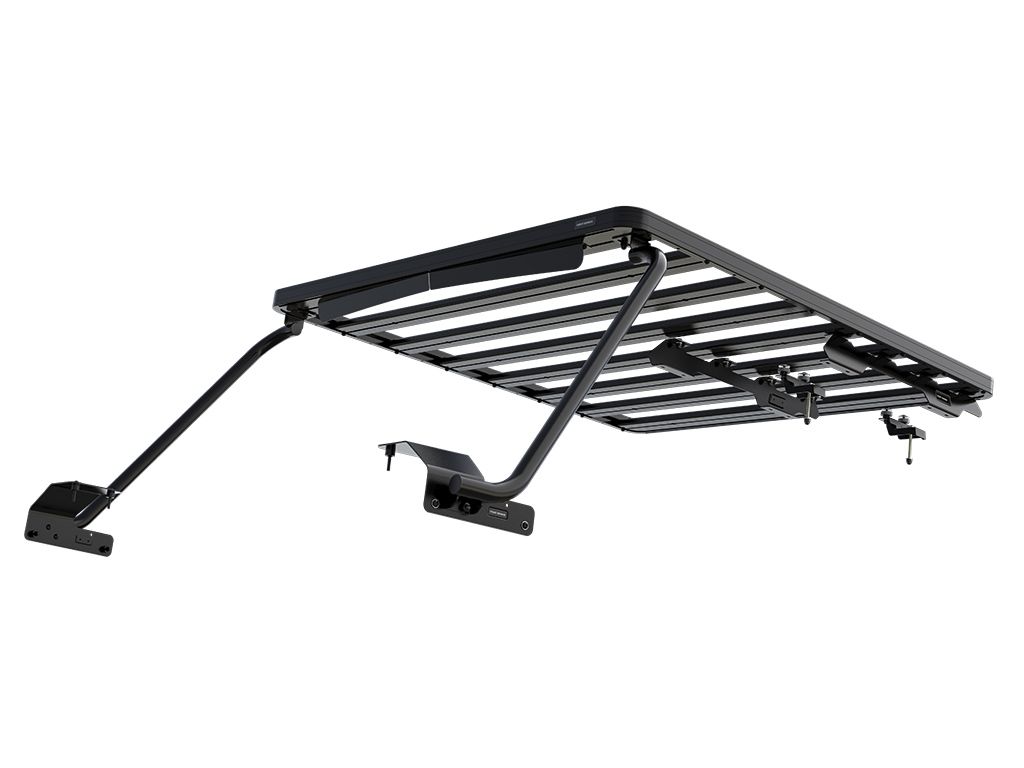

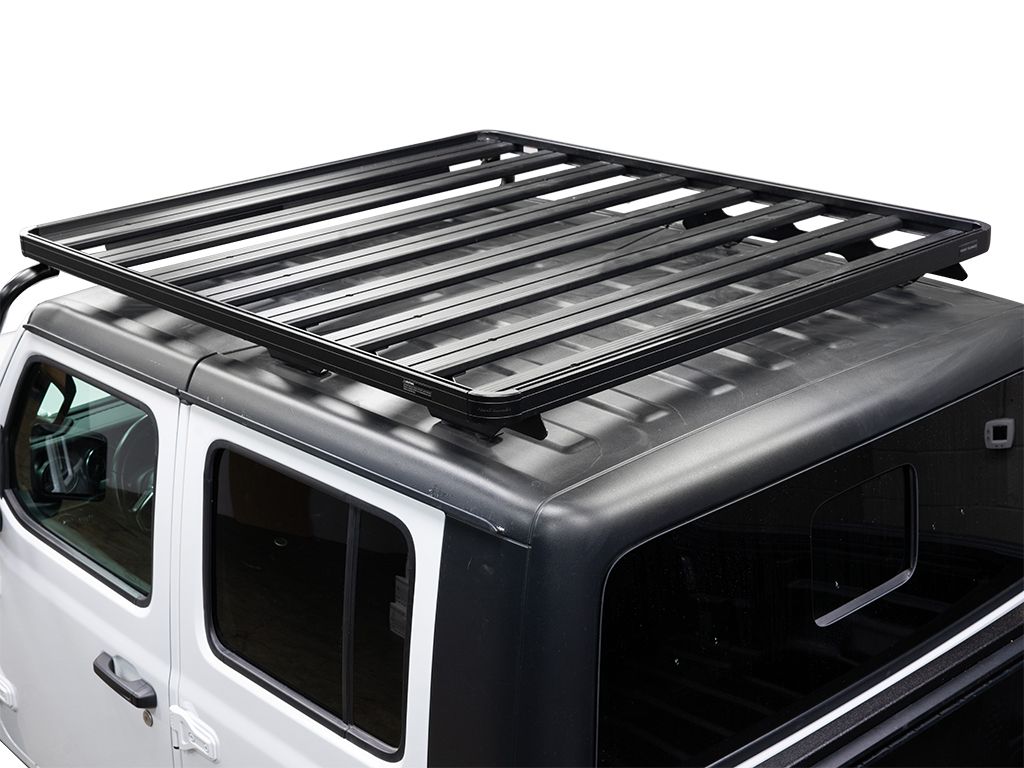

The Jeep Extreme mounting system bolts to the roll bar with middle and rear brackets. This unobtrusive, high-performance, nearly indestructible mounting solution allows you to quickly remove the Freedom Panels and works with the hardtop or with no roof at all. Freedom Panels can be quickly and easily removed with the rack in place. The cargo weight is evenly distributed across the roll bars and body of the jeep, placing zero weight on the hardtop itself.

Note: This kit is not suitable for the Mojave Edition and Diesel models of the Jeep Gladiator. Snorkels are not compatible with the Front Bar Roof Rack Mount in this kit.

Consisting of:

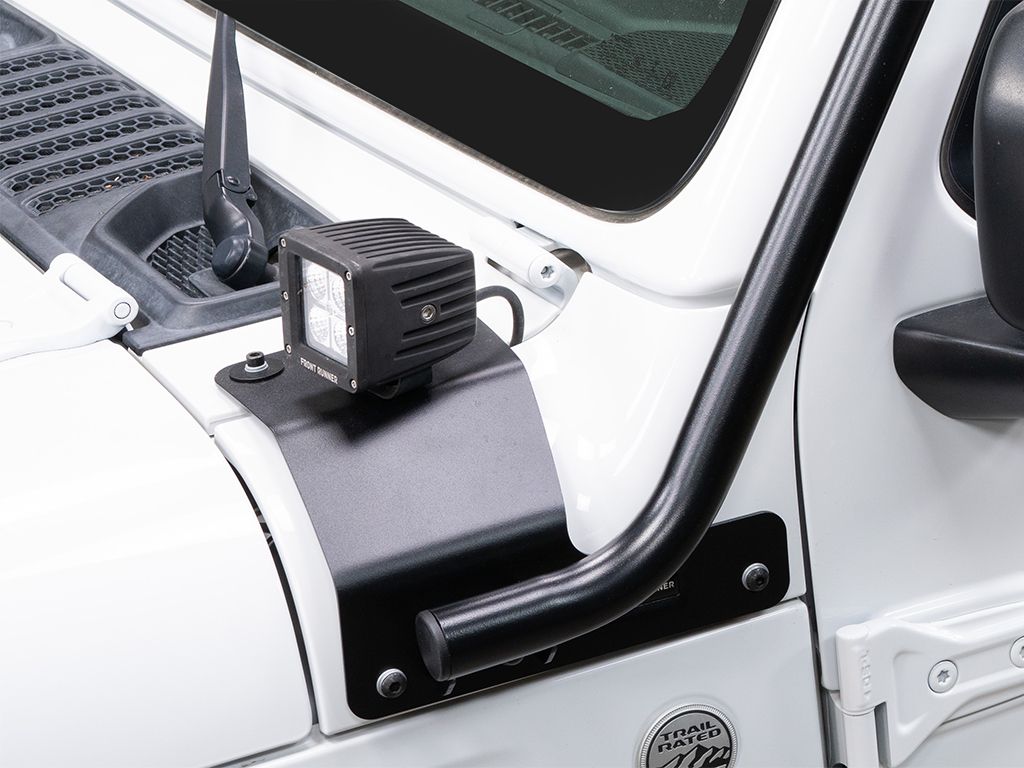

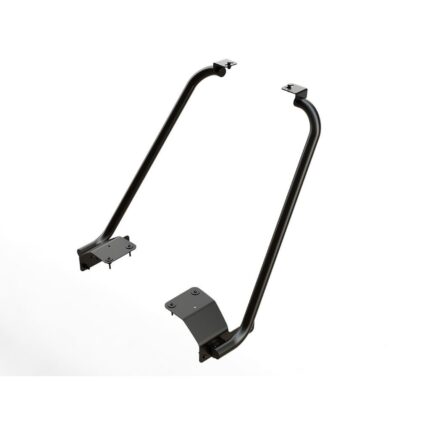

1 x FAJL004 – Jeep Wrangler JL (2018-Current) Front Bar Roof Rack Mount – by Front Runner

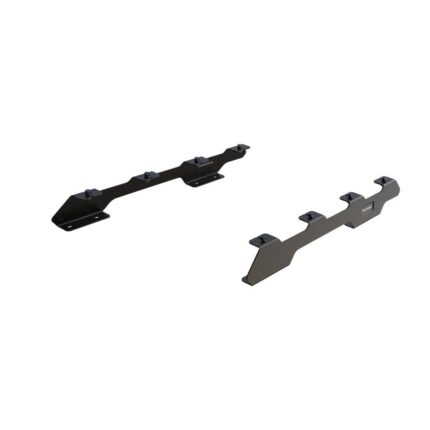

1 x FAJT001 – Jeep Gladiator JT (2019-Current) Foot Rails – by Front Runner

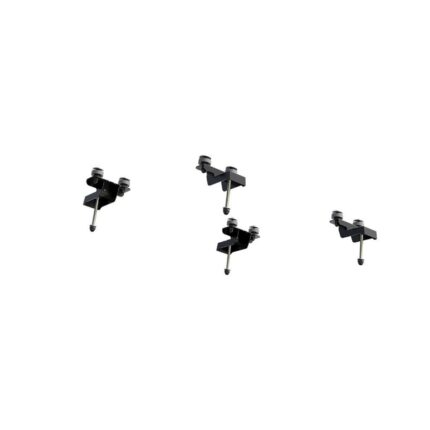

1 x FAJT002 – Jeep Gladiator (2019-Current) Inner Brackets – by Front Runner

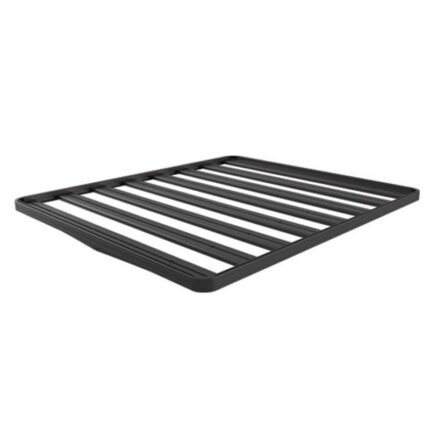

1 x RRSTJ08 – Slimline II Tray – 1425mm(W) X 1560mm(L) – by Front Runner
1 x WDST006 – Wind Deflector 45mm Lip Wide Pair / 1345mm(W) – by Front Runner

Material used:
Black epoxy powder-coated T6 aluminum
3CR12 Stainless Steel

Approximate Installed Weight 35kg (78lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicle’s roof.

Shipping Dimensions:
Width 520mm (20″)
Length 1615mm (64″)
Height 450mm (18″)

Shipping Weight:
Weight 41.0kg (90.1lbs)
