PORTABLE BATTERY BOX

Description

We don’t ever truly appreciate power, until we don’t have it. Black-outs at home are an instance that highlight the priority we put on power. No lights, no fridge, no connectivity = no fun!

The simplest solution for campers who haven’t invested in a dual-battery set up, or those who want a genuinely portable and versatile solution, you can’t look past a well-equipped battery box. Simply place your battery in the Battery Box, and away you go!

What can I run off the Battery Box?

The Portable Battery Box with its available outlets is suitable to run a number of different powered devices; some of the most popular including:

• 12v portable and car fridges
• Phone and device chargers
• Camping lights
• Sound systems
• Portable 12-volt camp ovens

The outlets are capable of up to 50 amps in 12v and can be bolstered with an appropriate invertor.

Battery Selection

The power available really comes down to the size of battery utilised in the battery box. The Ironman 4×4 Portable Battery Box is capable of holding up to an N70 size battery (305 l x 202 w x 225 h), which typically are available up to between 120 – 140Ah (amp hours).

The Ironman 4×4 Portable Battery Box is capable of storing and distributing power from lead acid, AGM or lithium-ion batteries; customers will need to couple the chosen battery with a suitable charging solution to match.

Lead acid and AGM batteries in good health are capable of utilising up to 70% of their full capacity (i.e. 84 usable amp hours from a 120amp hour battery). A lithium battery on the other hand can utilise 100% of its full capacity (i.e. 120 useable amp hours from a 120 amp hour battery).

THE IN’s AND OUT-LETS

Charging Up

The Ironman 4×4 Portable Battery Box is complete with inputs for ‘on-the-road’ and campsite charging via either solar or a suitable DC/DC charger direct from your vehicle. Additionally, the battery box allows for the battery to be charged at home on a 12v charger (battery and charger sold separately).

Input connectors include:

• High-current positive/negative terminal posts (suitable for input or output)
• 2 x 50amp Anderson plugs (suitable for input or output)

Power Out

When it comes to drawing power from the battery, the Portable Battery Box is equipped with numerous outlets suitable to run a range of camping and touring accessories.

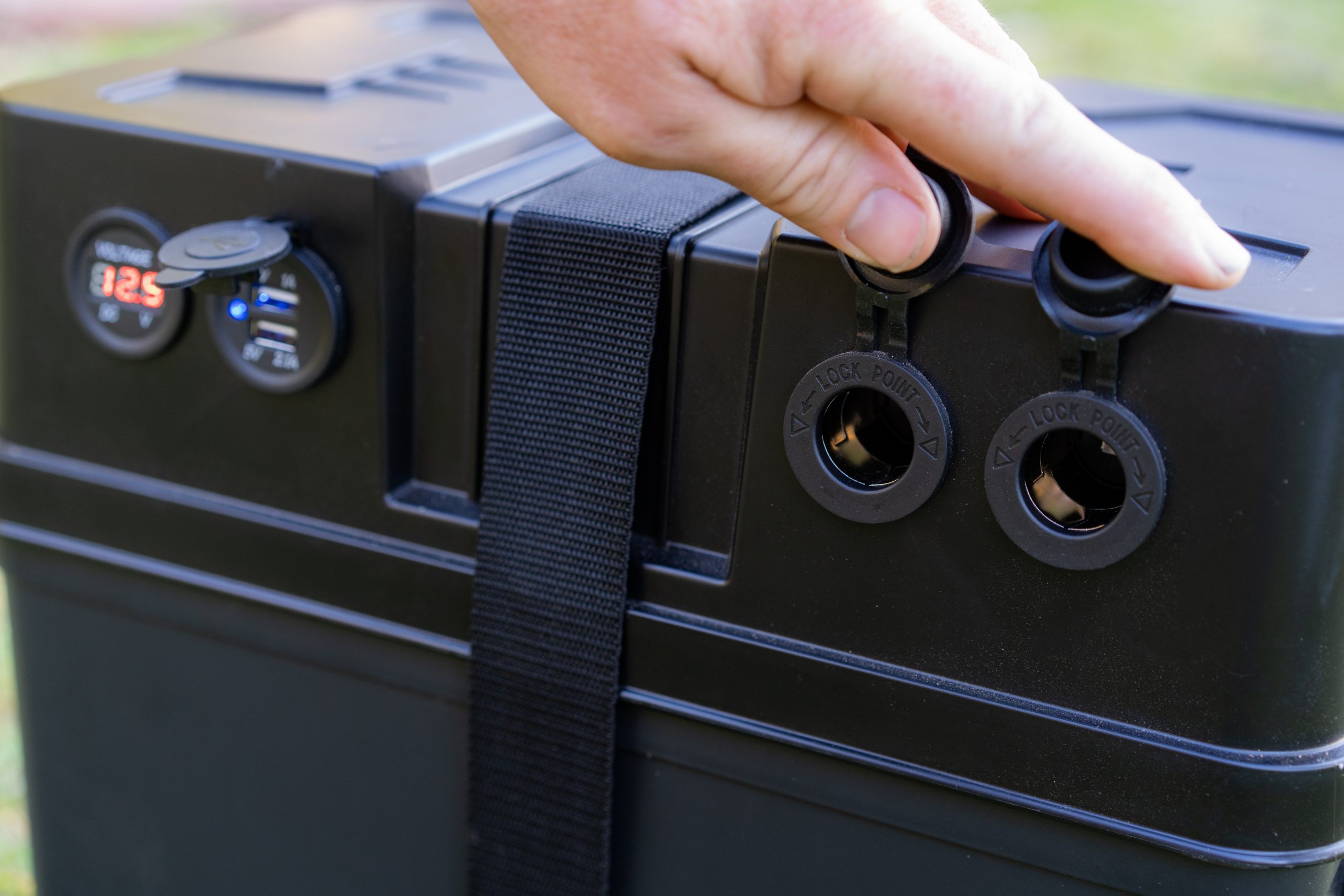

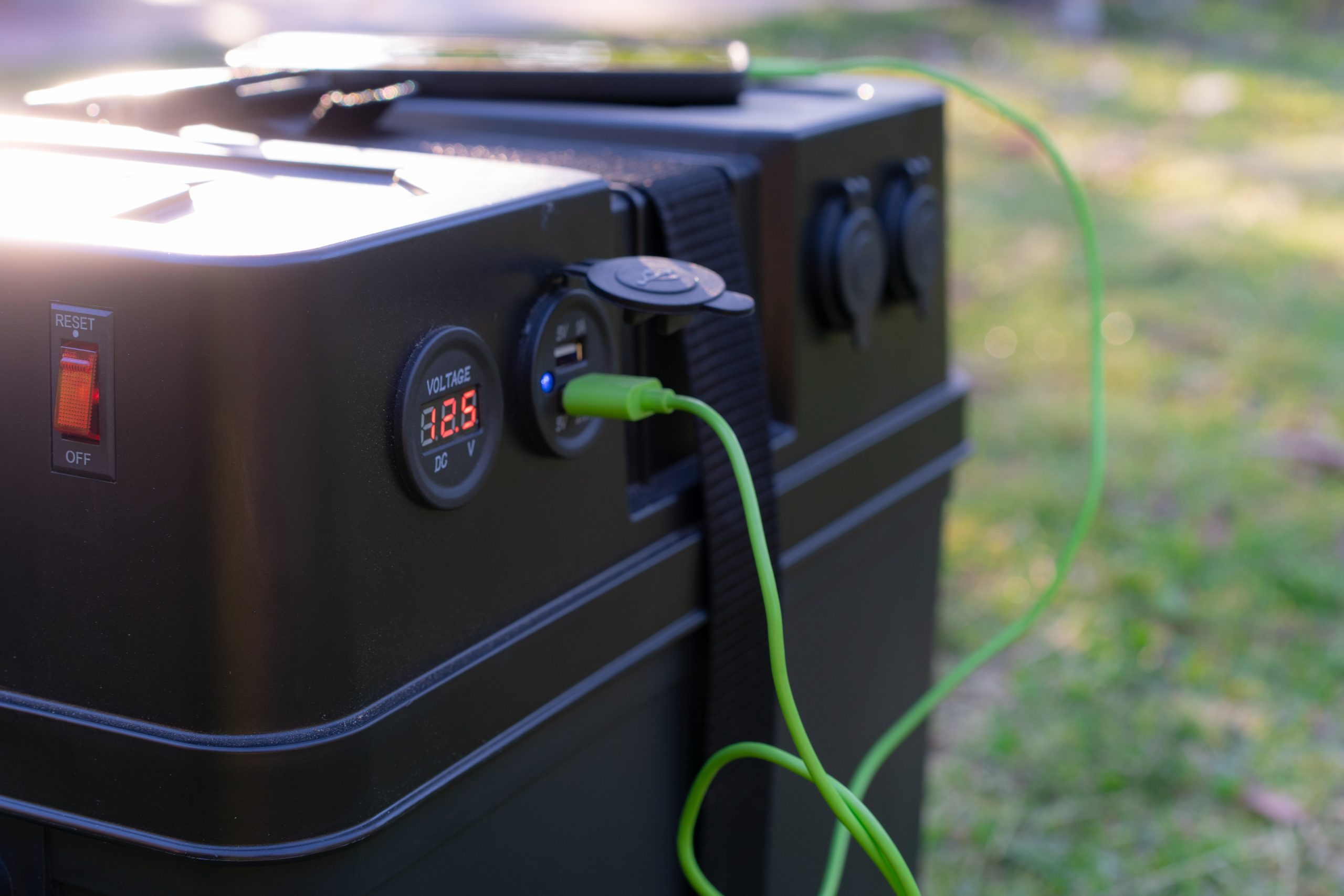

Outlet connectors include:

• High-current positive/negative terminal posts (suitable for input or output)
• 2 x 50amp Anderson plugs (suitable for input or output)
• 1 x 5V 1.0amp USB socket
• 1 x 5V 2.1amp USB socket
• 2 x 10amp 12v sockets

Convenience and Contingency

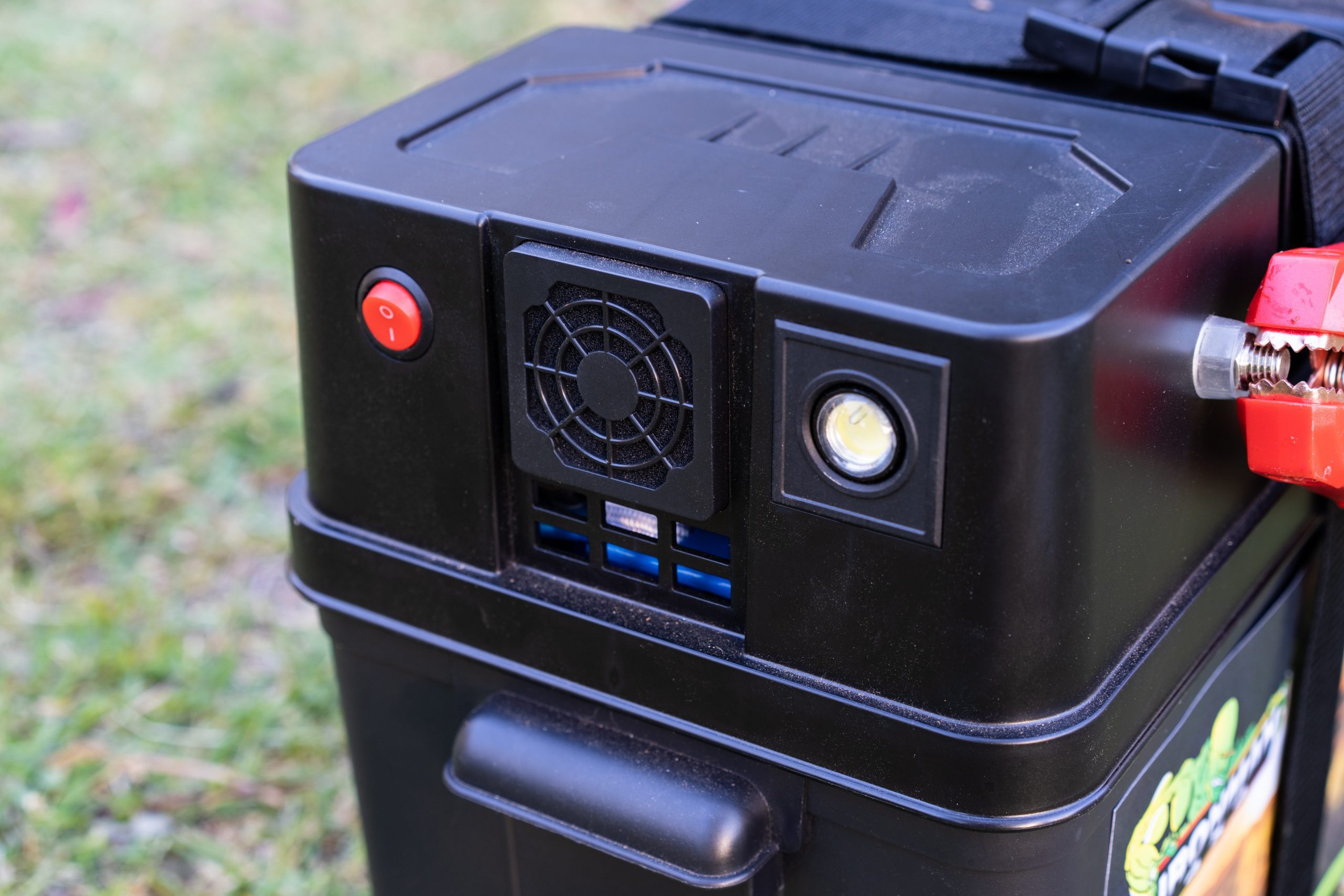

Covering all bases, the Ironman 4×4 Portable Battery Box also features a built-in fan for improved air flow and circulation to the battery as well as an inbuilt fuse protector.

A nice additional feature is the side LED light which is great for when you might need a little bit of extra light right by your battery charging station.

KEY FEATURES

• Transforms a battery to a 6+ outlet power station
• Easy solar connection via 50amp Anderson plug, compatible with Ironman Solar Blankets
• Built-in fan and fuse protector for battery and device protection
