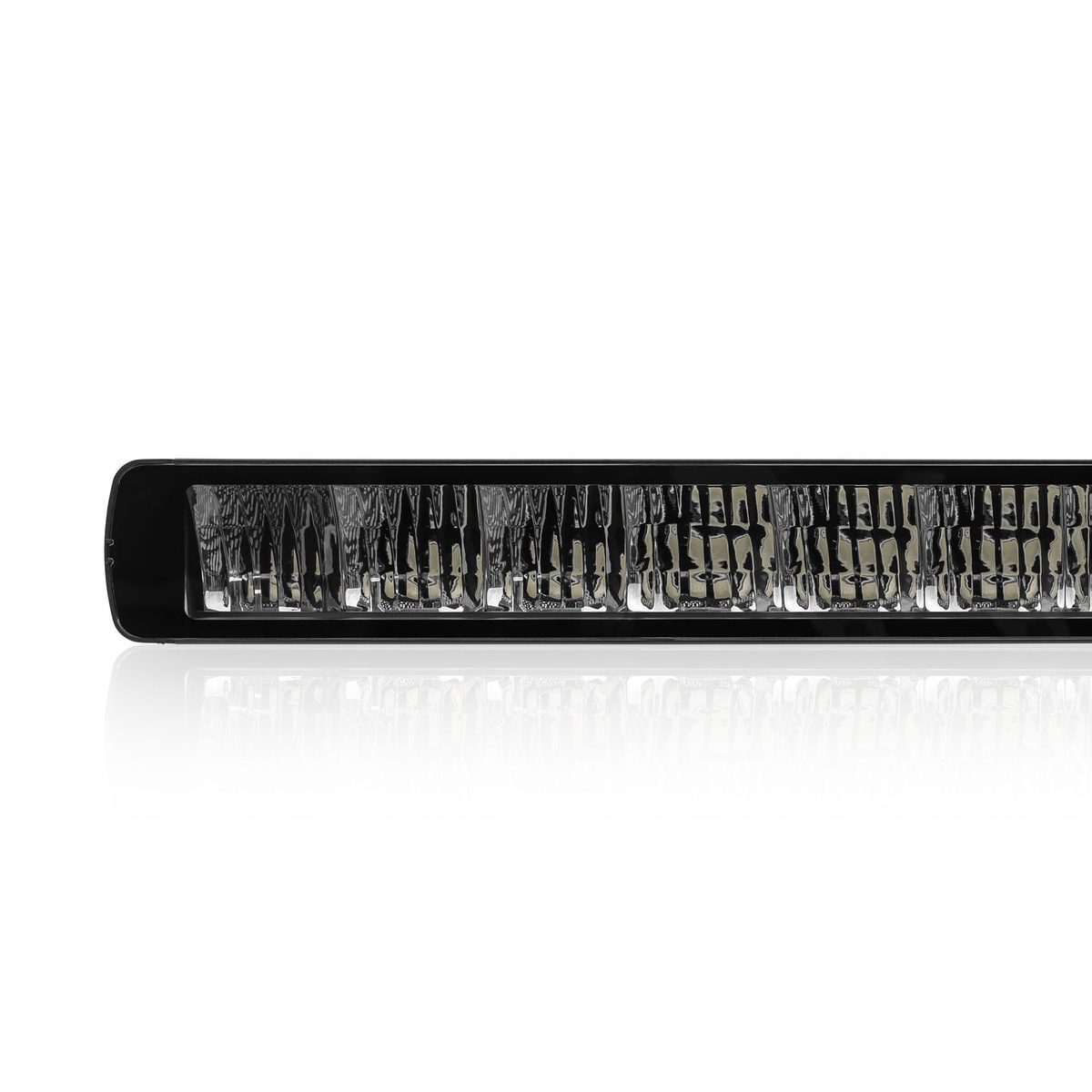

Name: ST-X 40.5 INCH LED LIGHT BAR - UR OFF ROAD
Brand: STEDI
SKU: LEDST-X-40-16L
Price: 130.000 KWD
Availability: InStock

Description

THE BEAM PATTERN

If you’re looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.

Significantly minimises adverse reflection from road signs
Controlled vertical spread minimises reflections off of high-mounted road signs.

KEY FEATURES

16x 15W LEDs

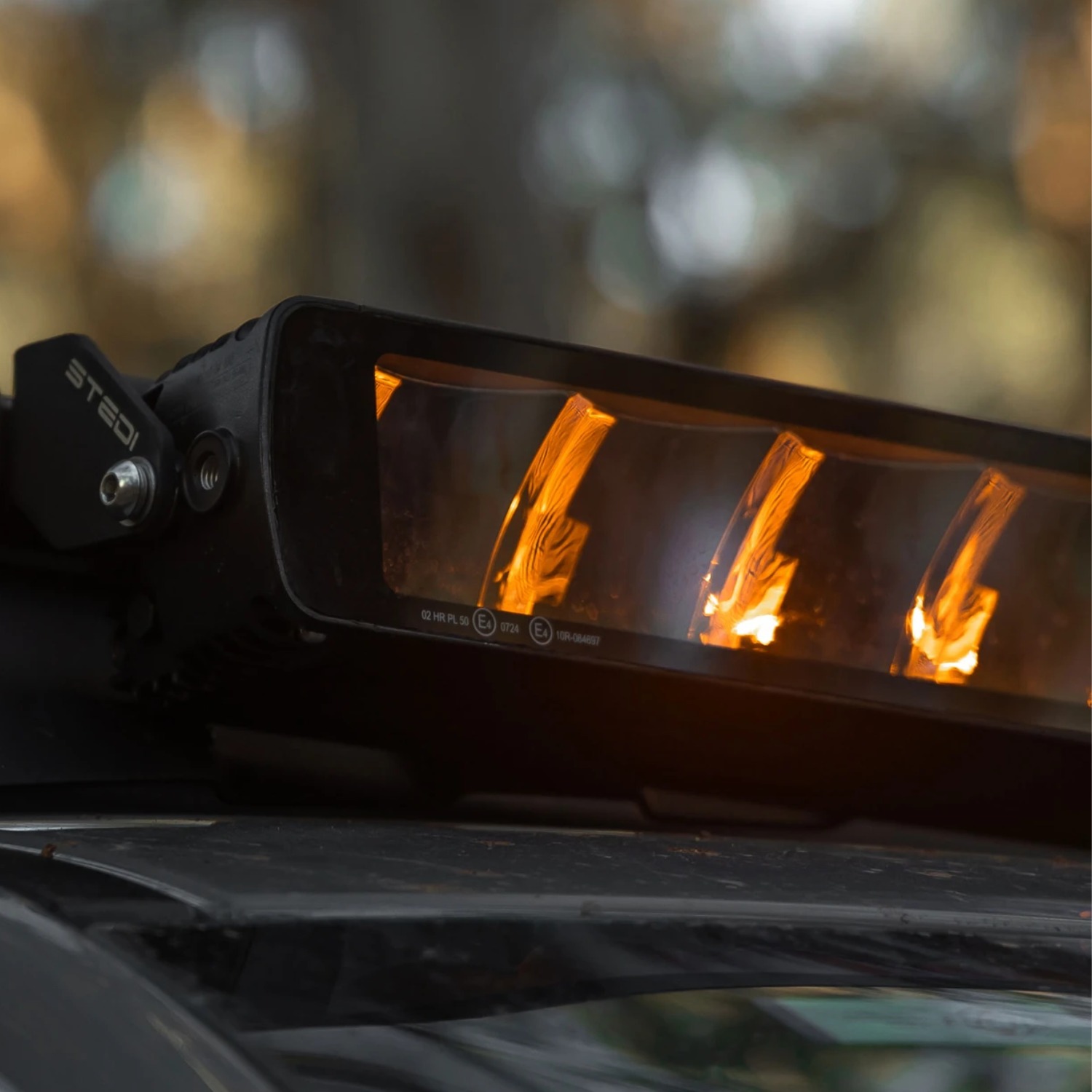

LED Parking / Position Light Function (Amber or White built-in)
Breather allows pressure equalisation when rapid heat up and cool down cycles occur
Anodized Polyester Powder Coat
Weatherproof Deutsch® DTP Connector
Includes adjustable Side brackets & Sliding bottom brackets
Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)
Protected against reverse polarity
Shockproof, IP68 waterproof, UV Shielded
Protected Against RFI / EMC Interference
Voltage & current surge protection
Pulse Width Modulation Thermal Management

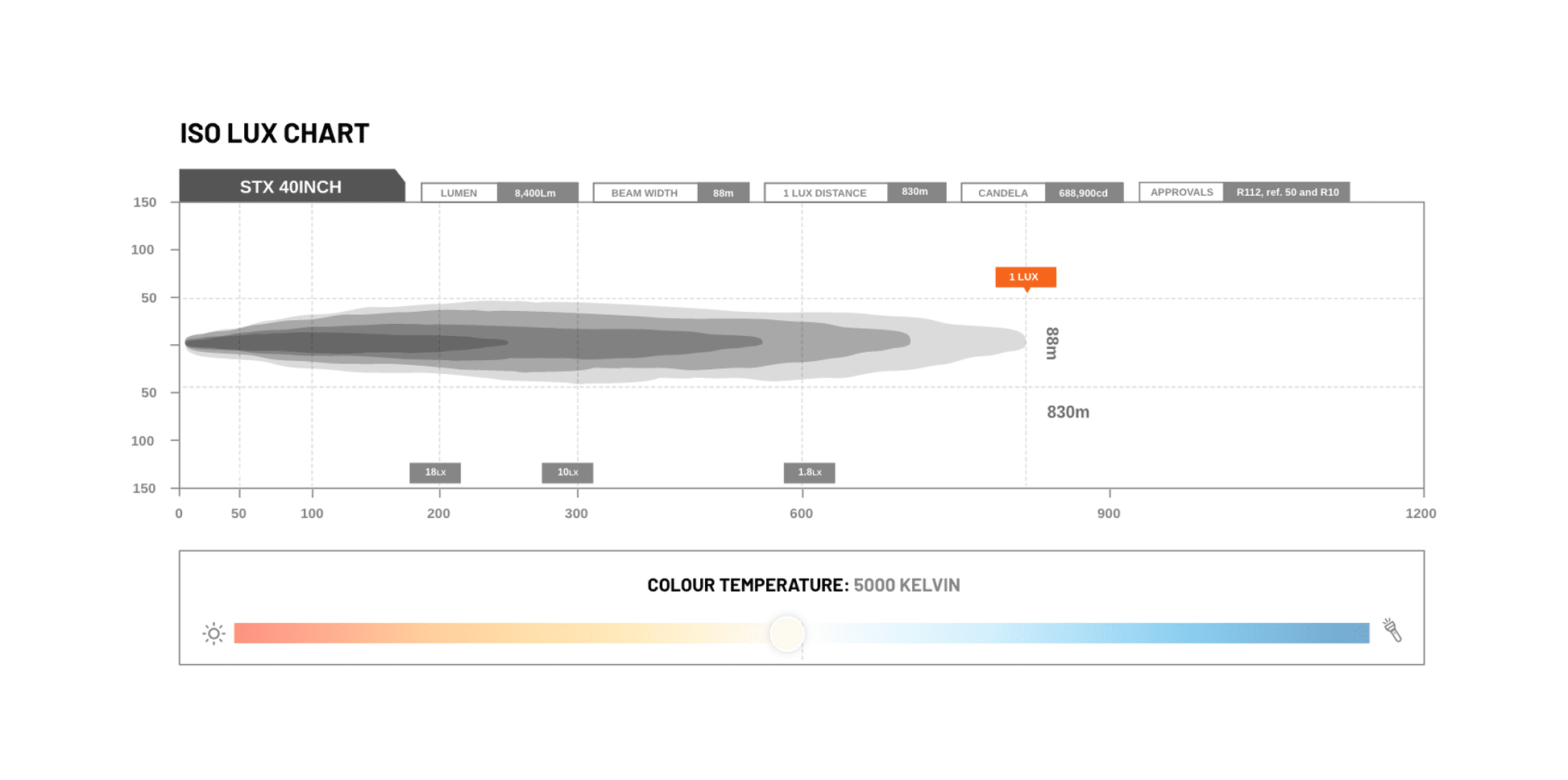

LUX GRAPH

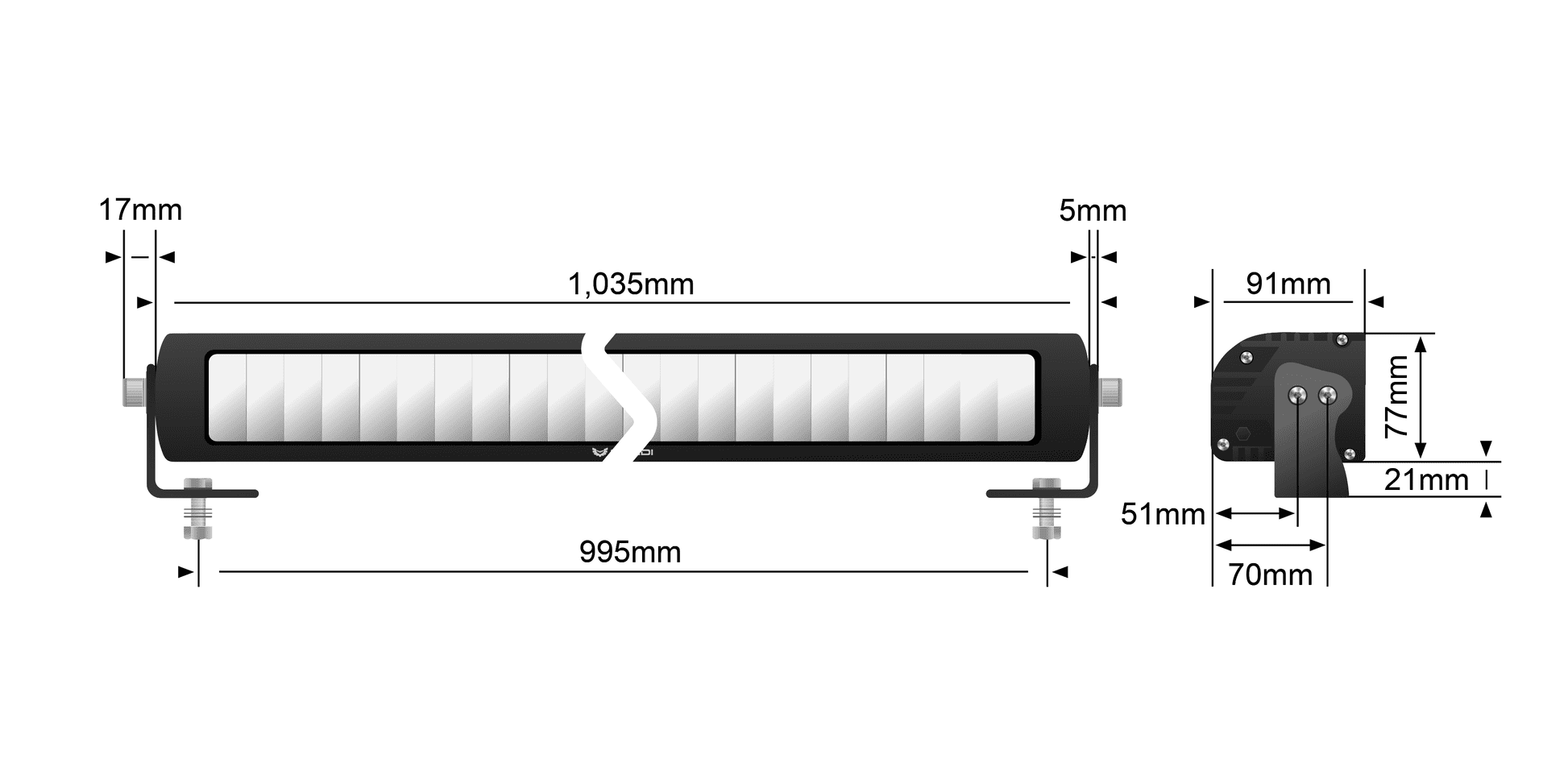

DIMENSIONS

TECH SPECS

VOLTAGE	9-36V
AMPERES	17.2A @ 12V (full power), 3.28A @ 12V (limit power)
POWER	206.4W (full power), 39.36 (limit power)
LUMENS	8400LM (full power), 2327LM (limit power)
COLOUR TEMPERATURE	5000k
AMP RATING	0.5a
PHOTOMETRIC DATA	1 lux @ 859m (full power), 1 lux @ 450m (limit power)
LENS MATERIAL	OPTICAL GRADE, HARD-COATED LEXAN
HOUSING MATERIAL	6063 EXTRUSION
INGRESS PROTECTION	IP68
CANDELAS	739582 @ full power, 203337 @ limit power
CONNECTOR	60cm cable with DTP 4in
OPERATING TEMP	-40°C ~ +60°C
CERTIFICATES	R112, ref. 50 and R10
LIFESPAN	50, 000hrs (LM80)
PRODUCT WEIGHT	3.7kg
SHIPPING WEIGHT	4.2kg
