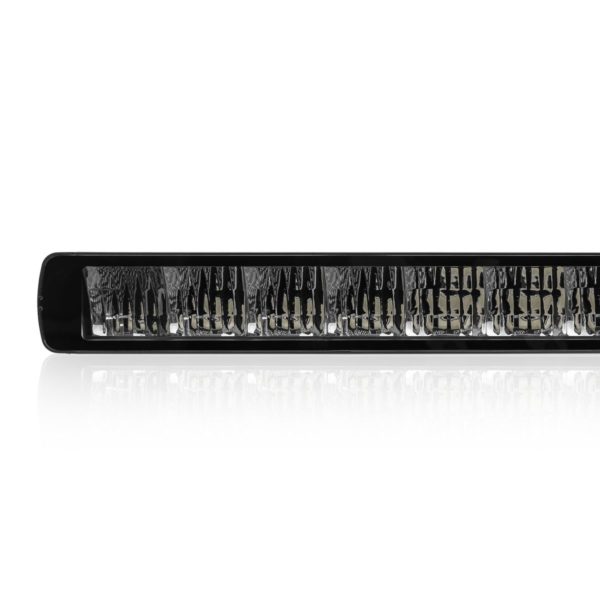

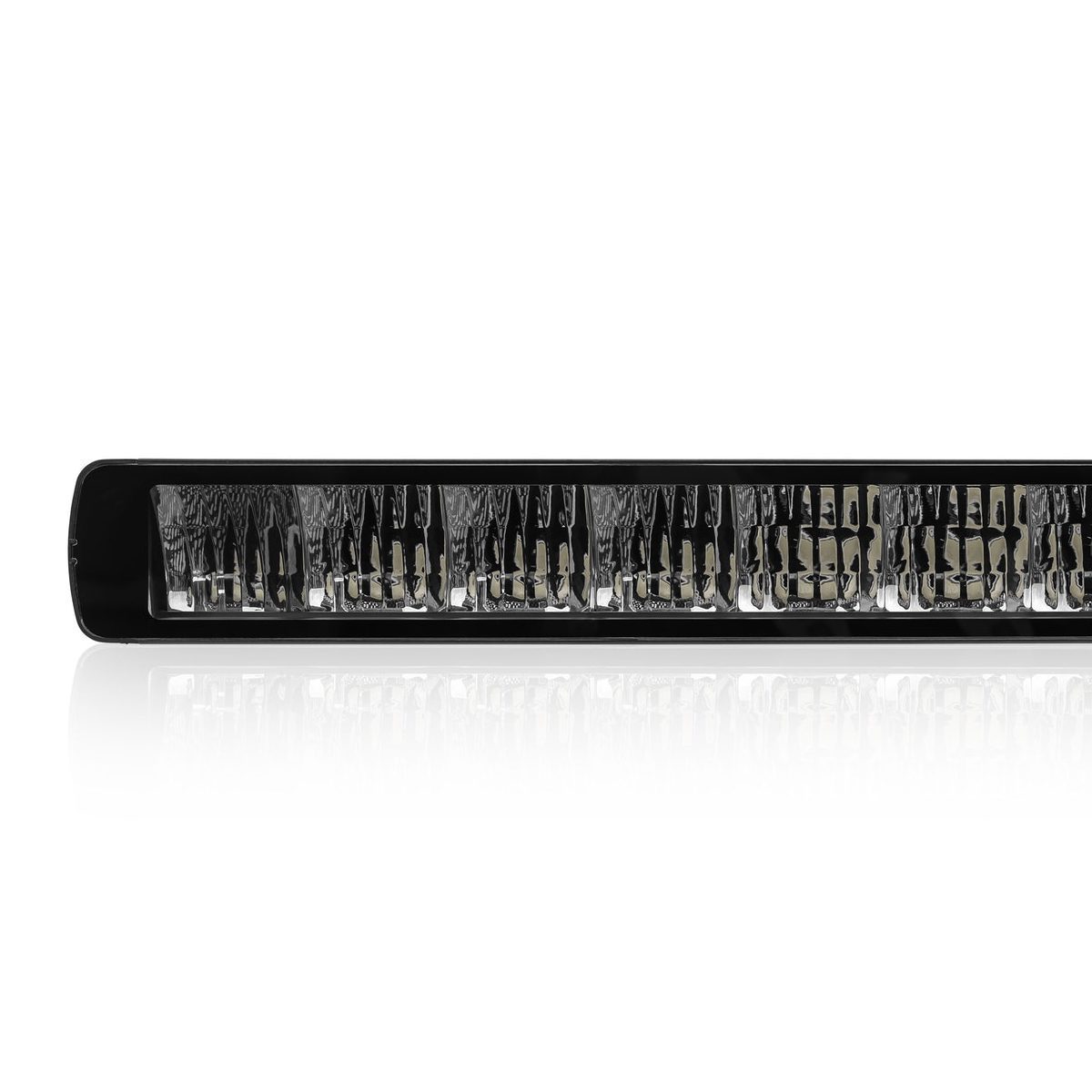

Name: ST-X 50 INCH LED LIGHT BAR - UR OFF ROAD
Brand: STEDI
SKU: LEDST-X-50-20L
Price: 150.000 KWD
Availability: InStock

Description

THE BEAM PATTERN

If you’re looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.

Significantly minimizes adverse reflection from road signs
Controlled vertical spread minimizes reflections off of high-mounted road signs.

KEY FEATURES

- 20x 15W LEDs

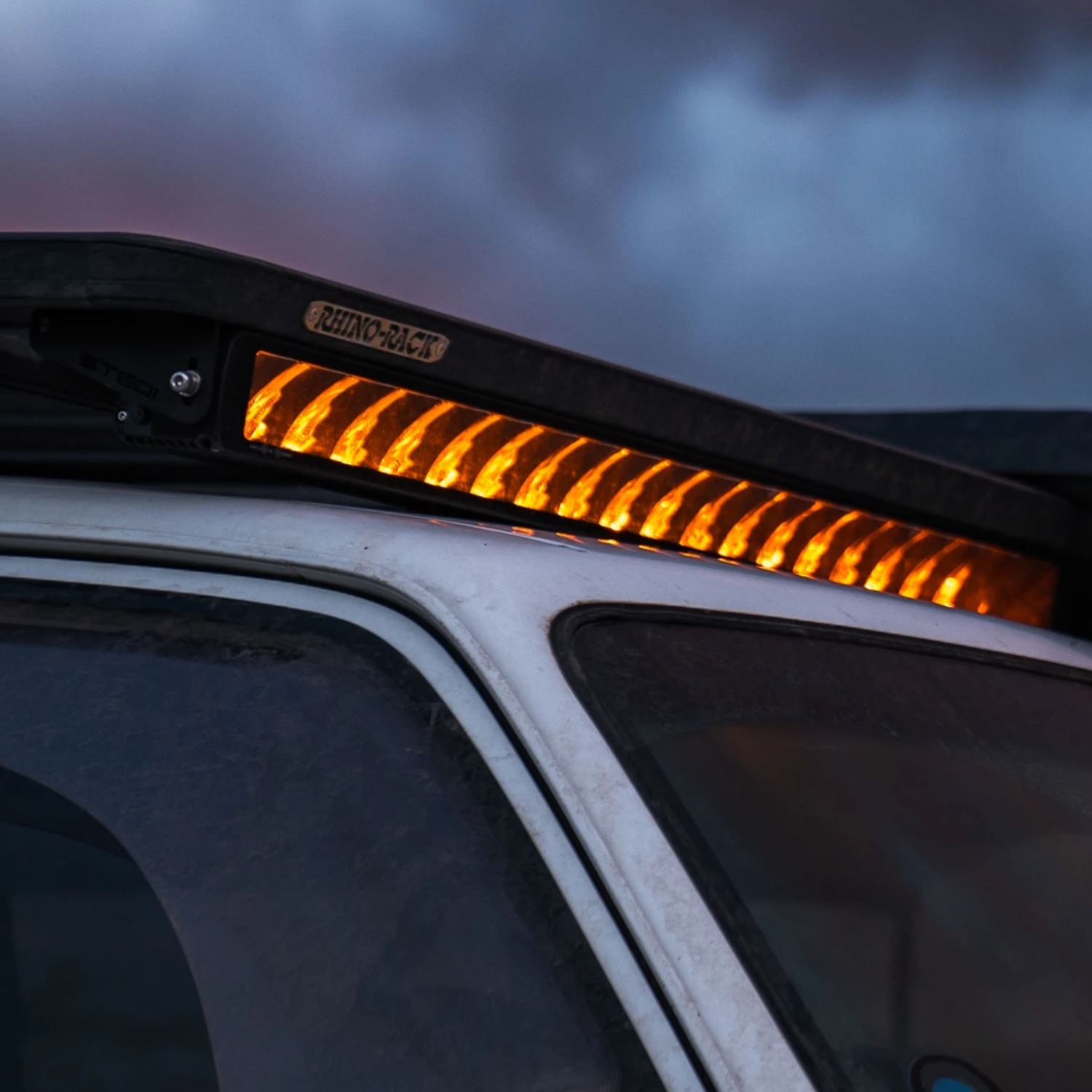

- LED Parking / Position Light Function (Amber or White built-in)
- Breather allows pressure equalisation when rapid heat up and cool down cycles occur
- Anodized Polyester Powder Coat

Weatherproof Deutsch® DTP Connector
Includes adjustable Side brackets & Sliding bottom brackets
Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)
Protected against reverse polarity
Shockproof, IP68 waterproof, UV Shielded
Protected Against RFI / EMC Interference
Voltage & current surge protection
Pulse Width Modulation Thermal Management

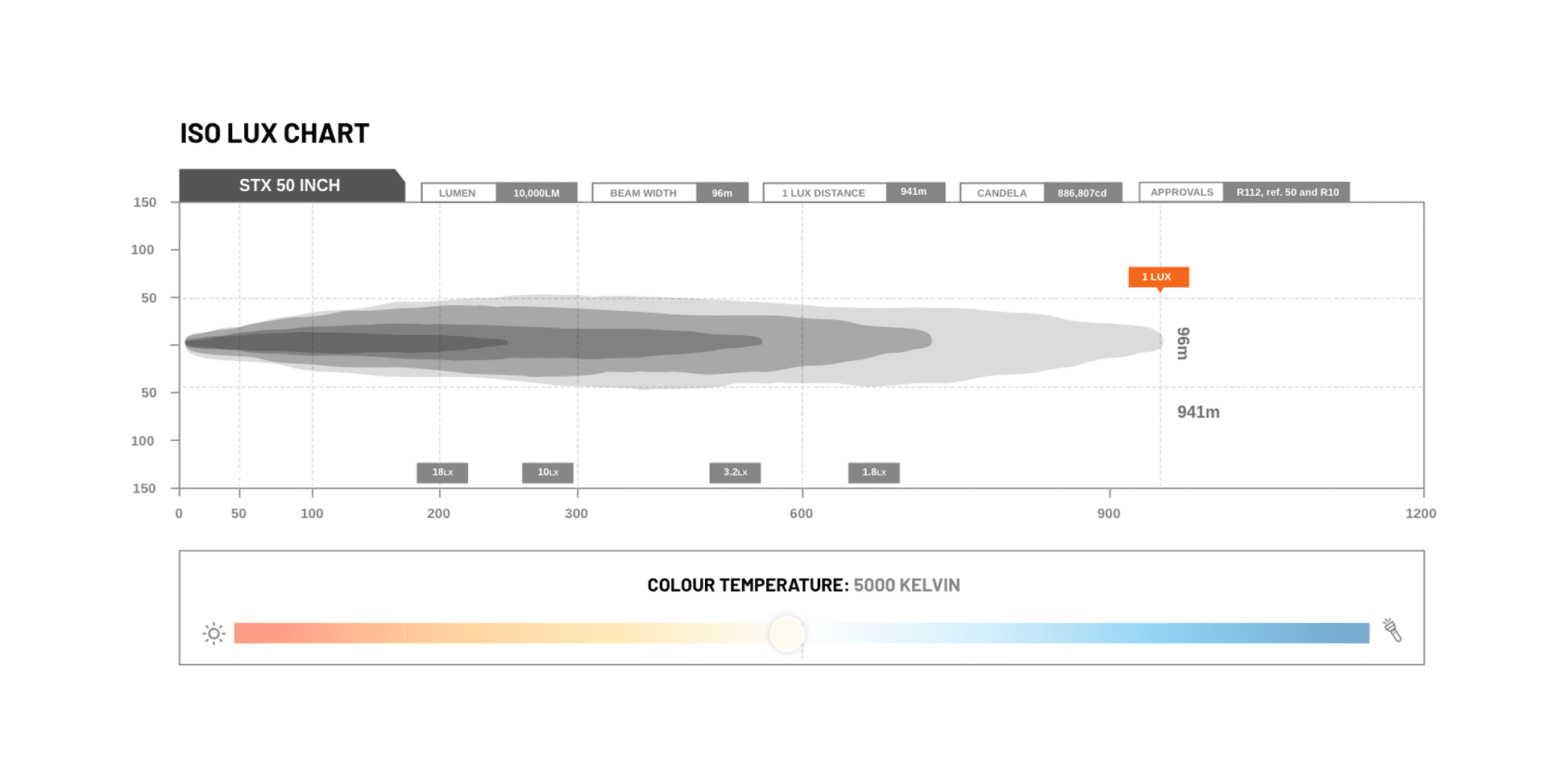

LUX GRAPH

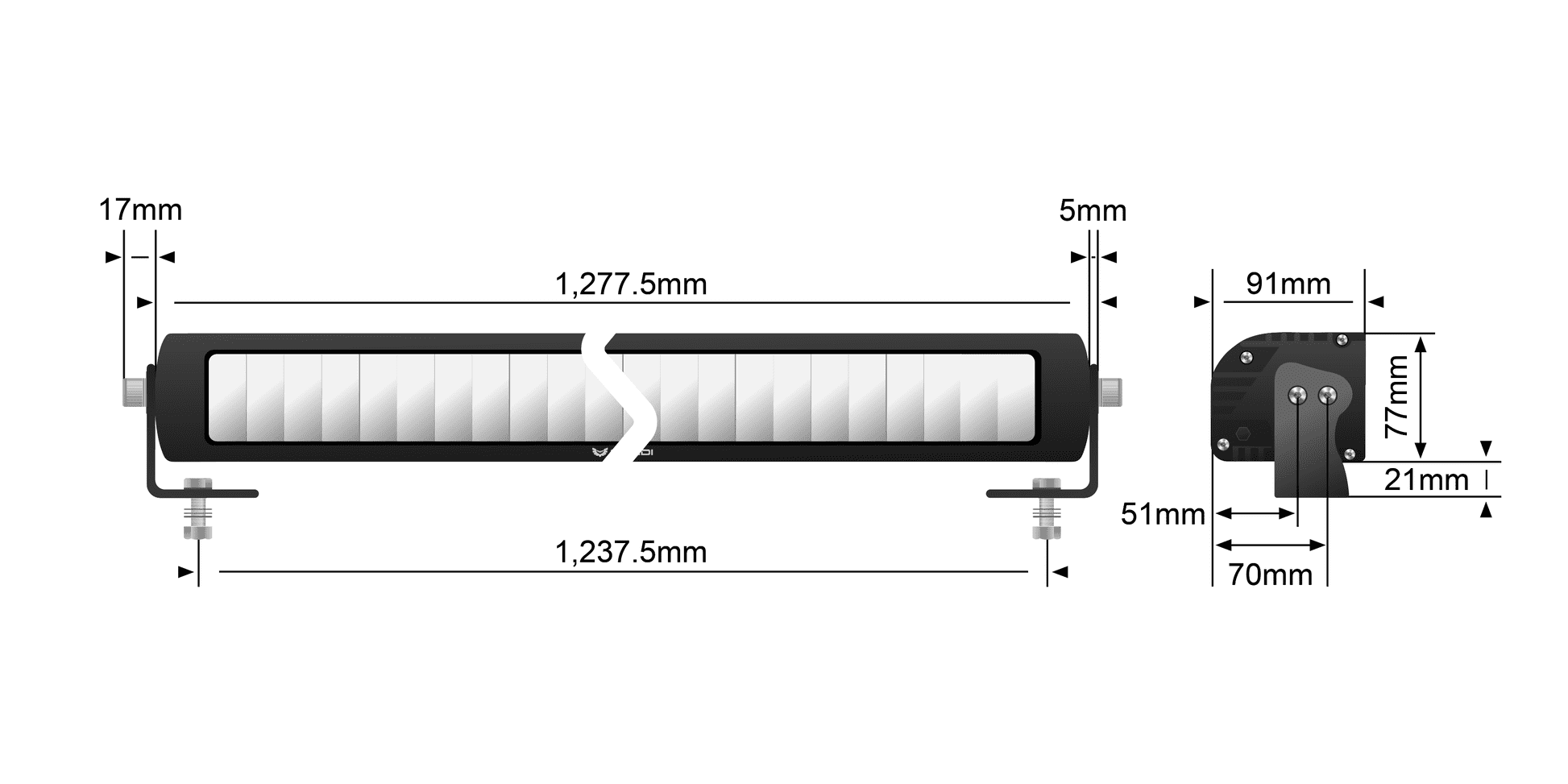

DIMENSIONS

KEY TECHNICAL BREAKDOWN

Registered Design: 201915829.
CREE® XLamp XP-L HI undomed LEDs using CREE’s breakthrough SC5 Technology™
RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
IP68 – Submersible to 3m
Deutsch DT 15A connector
32mm diameter parabolic reflectors
Spread and Spot beam pattern
4mm thick 304 stainless steel side brackets included.
Cast Alloy adjustable sliding bracket included.
Nitto Denko™ Breather with PTFE microporous membrane
Very heavy-duty Smart Plug & Play ADR compliant Wiring Harness. (Switch, Dual Fuse, Dual Relay and HB3 and H4 Piggyback Adaptors) include

TECH SPECS

VOLTAGE	9-36V
AMPERES	22.64A @ 12V (full power), 2.75A @ 12V (limit power)
POWER	271.68W (full power), 33W (limit power)
LUMENS	10000LM (full power), 2168LM (limit power)
COLOUR TEMPERATURE	5000K
AMP RATING	0.7a
PHOTOMETRIC DATA	1 lux @ 941m (full power). 1 lux @ 433m (limit power)
LENS MATERIAL	Optical grade, Hard-coated LEXAN
HOUSING MATERIAL	6063 Extrusion
INGRESS PROTECTION	IP68
CANDELAS	886807 @ full power, 187814 @ limit power
CONNECTOR	60cm Cable with DTP 4in
OPERATING TEMP	-40°C ~ +150°C
CERTIFICATES	R112, ref. 50 and R10
LIFESPAN	50, 000hrs (LM80)
PRODUCT WEIGHT	4.2kg
SHIPPING WEIGHT	5.7kg
