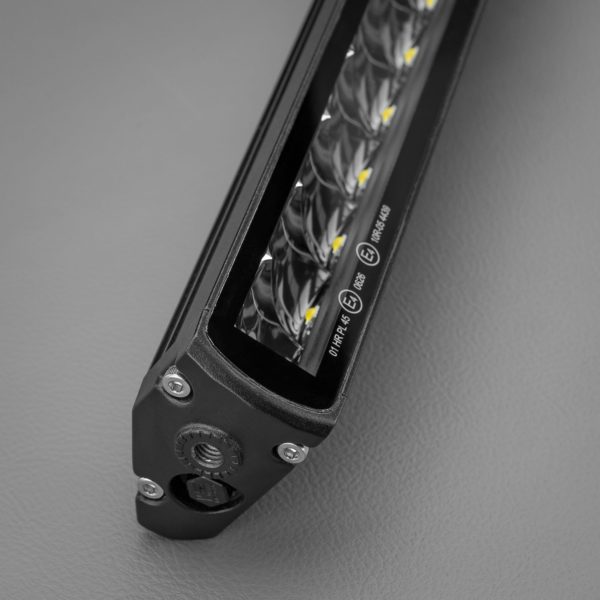

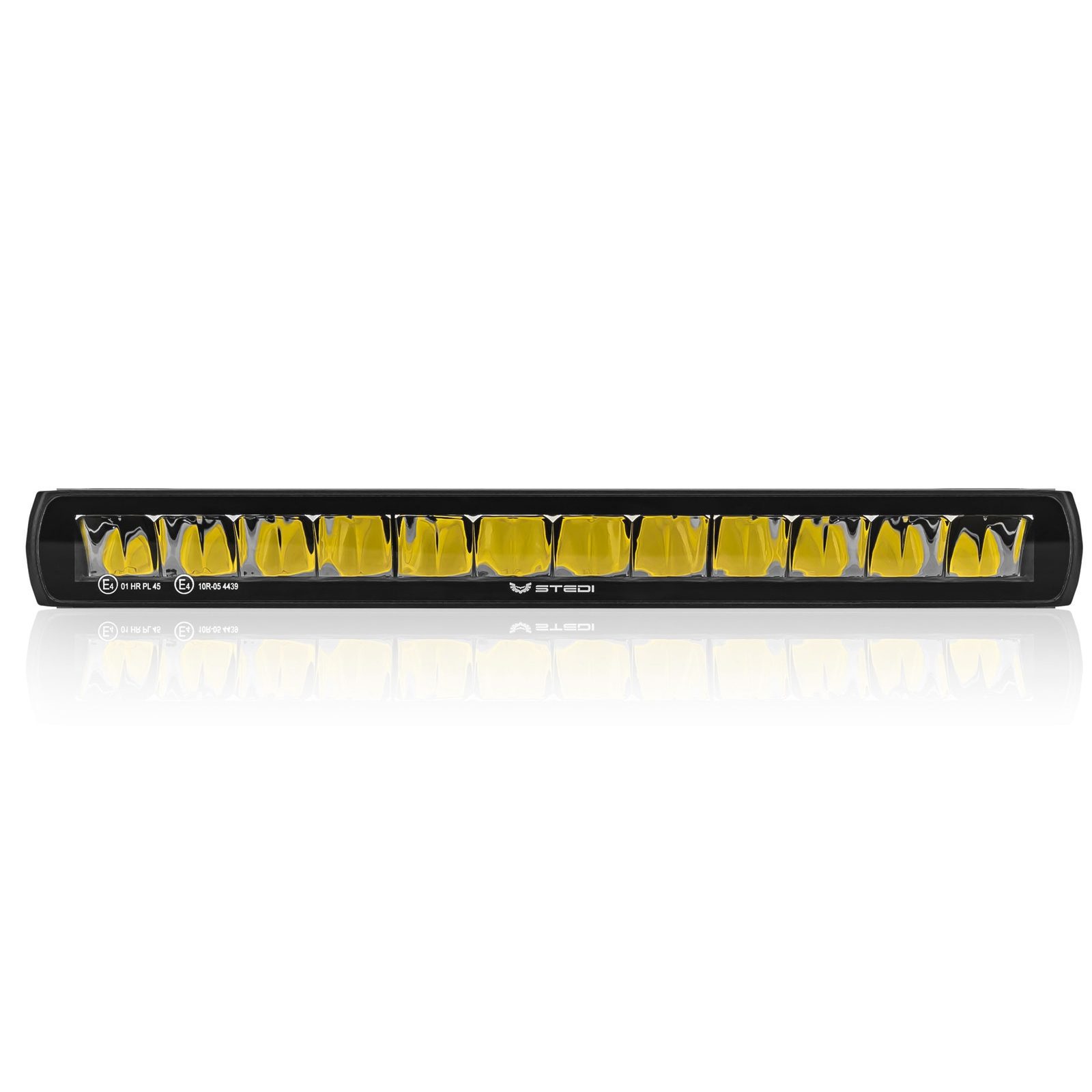

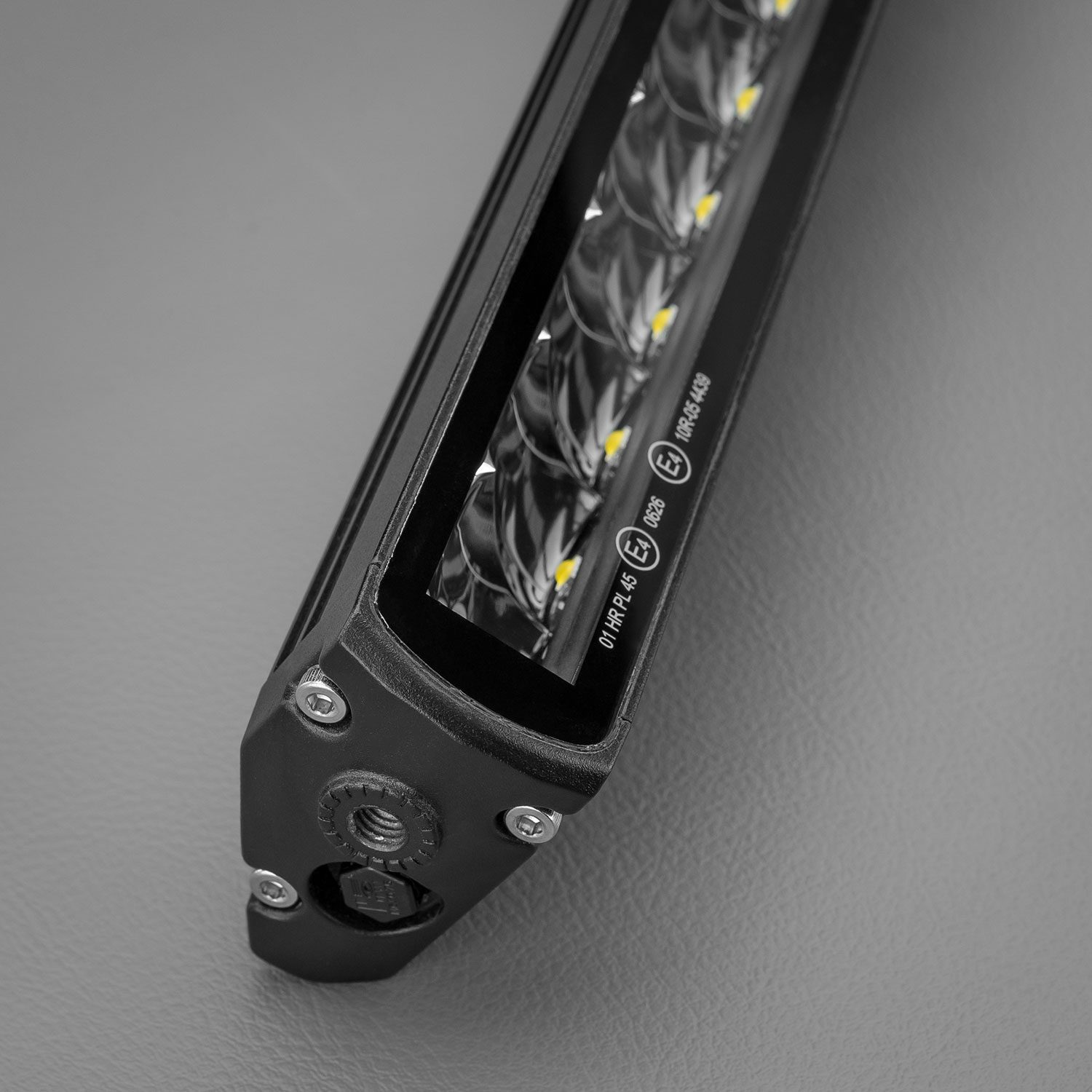

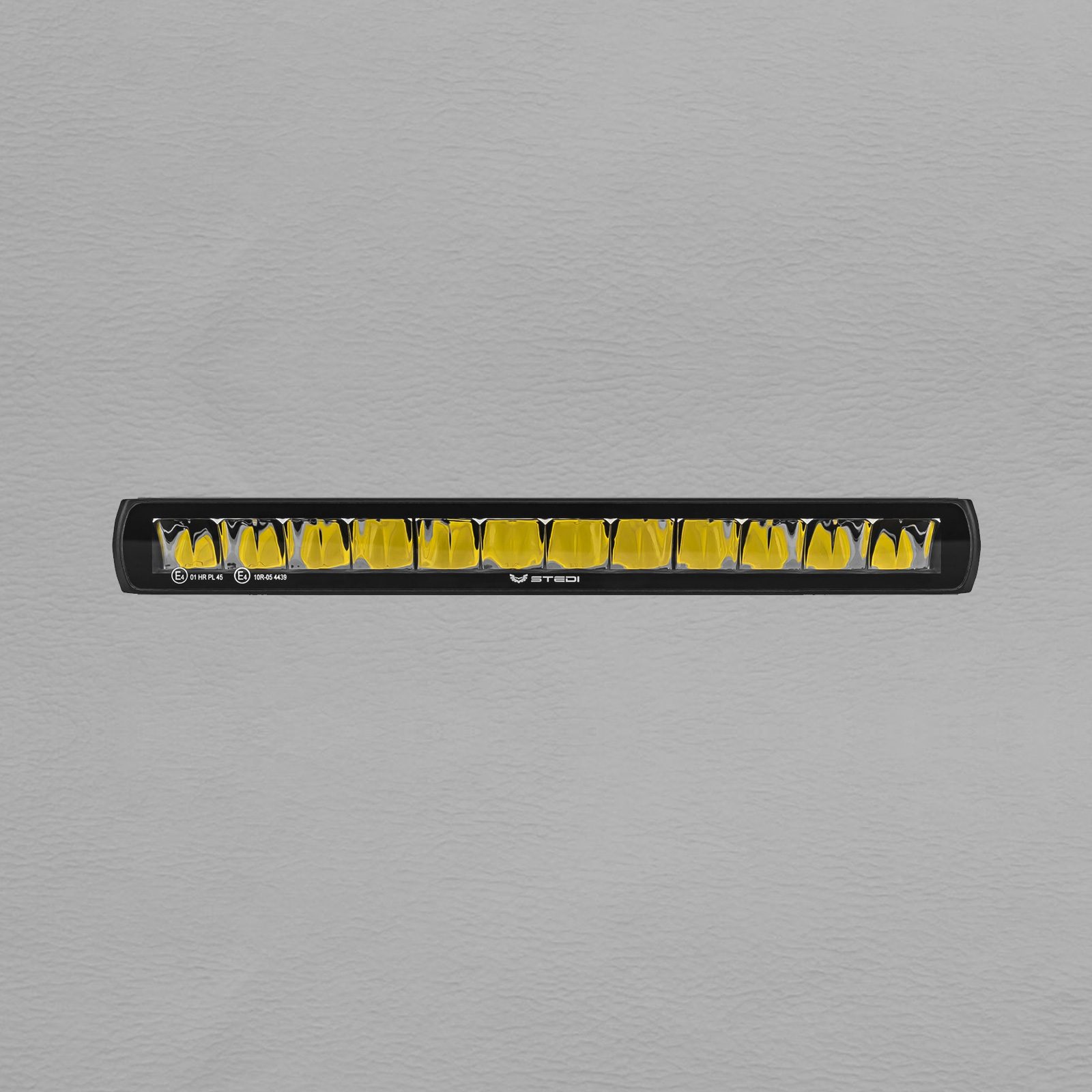

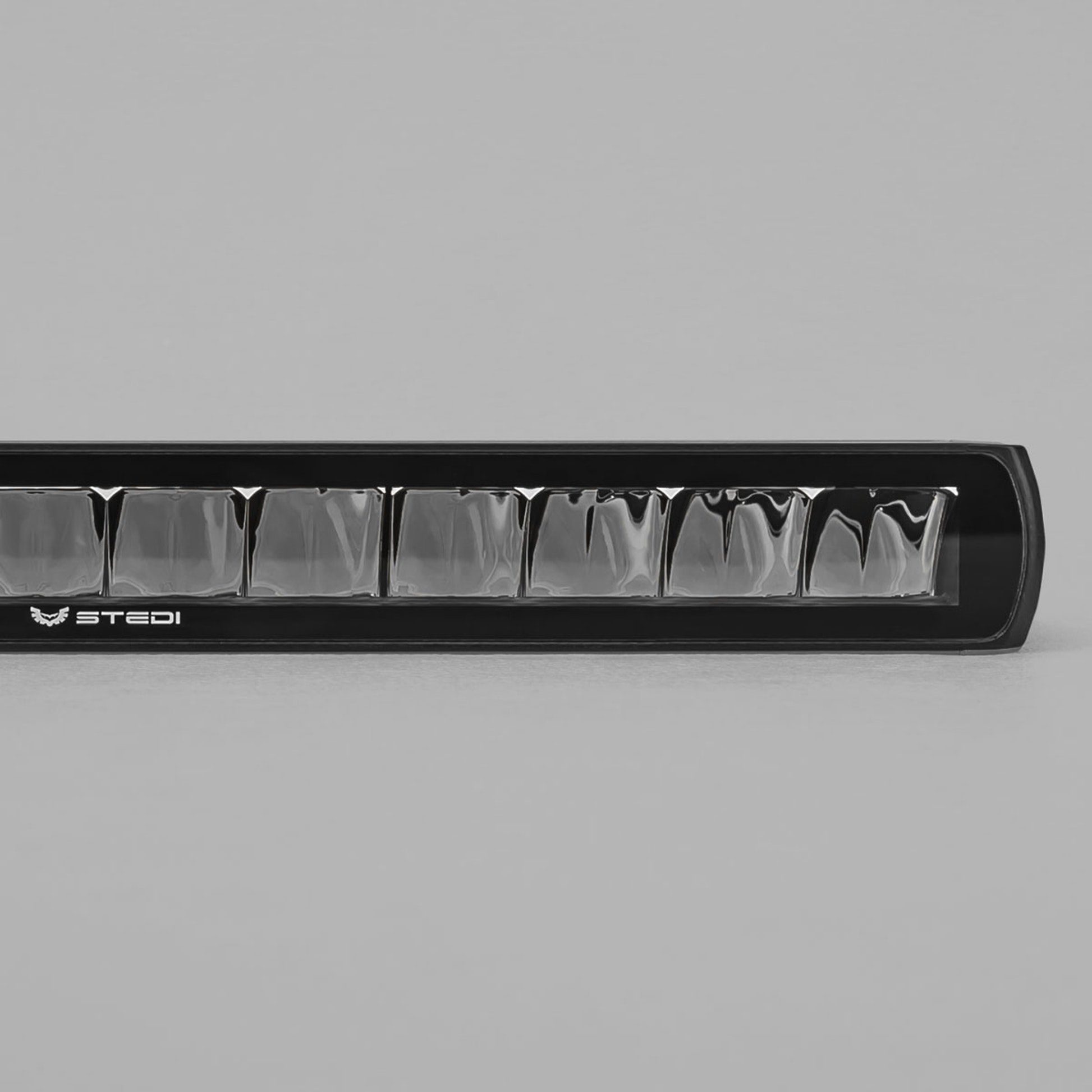

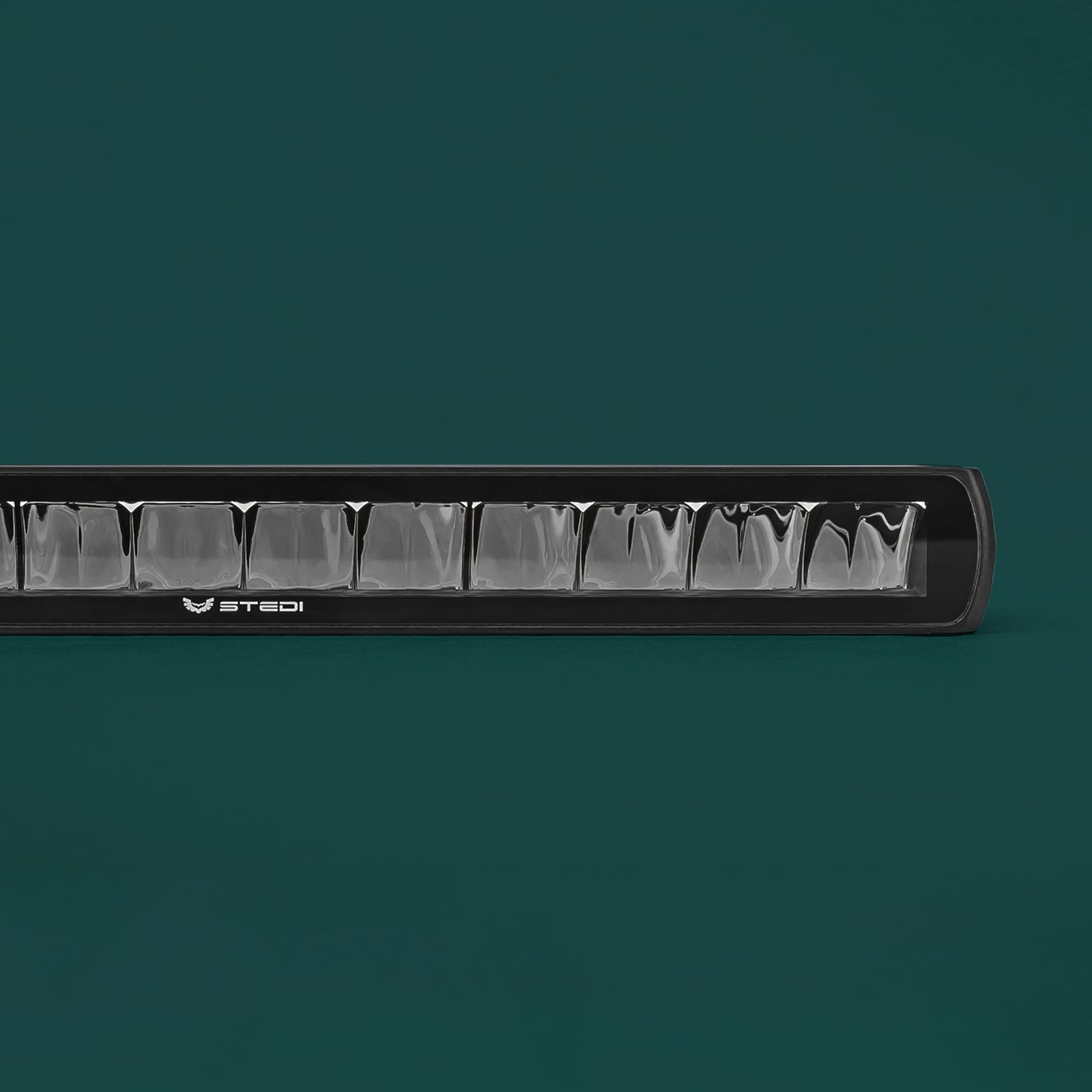

ST1K 13.5 INCH E-MARK LED LIGHT BAR
KWD 36.000
- Distance: 367m
- Lumens: 3,552Lm (RAW)
- Brackets included
- Easy Fit High Beam Wiring Harness
- 5 years warranty protection
Out of stock
Description

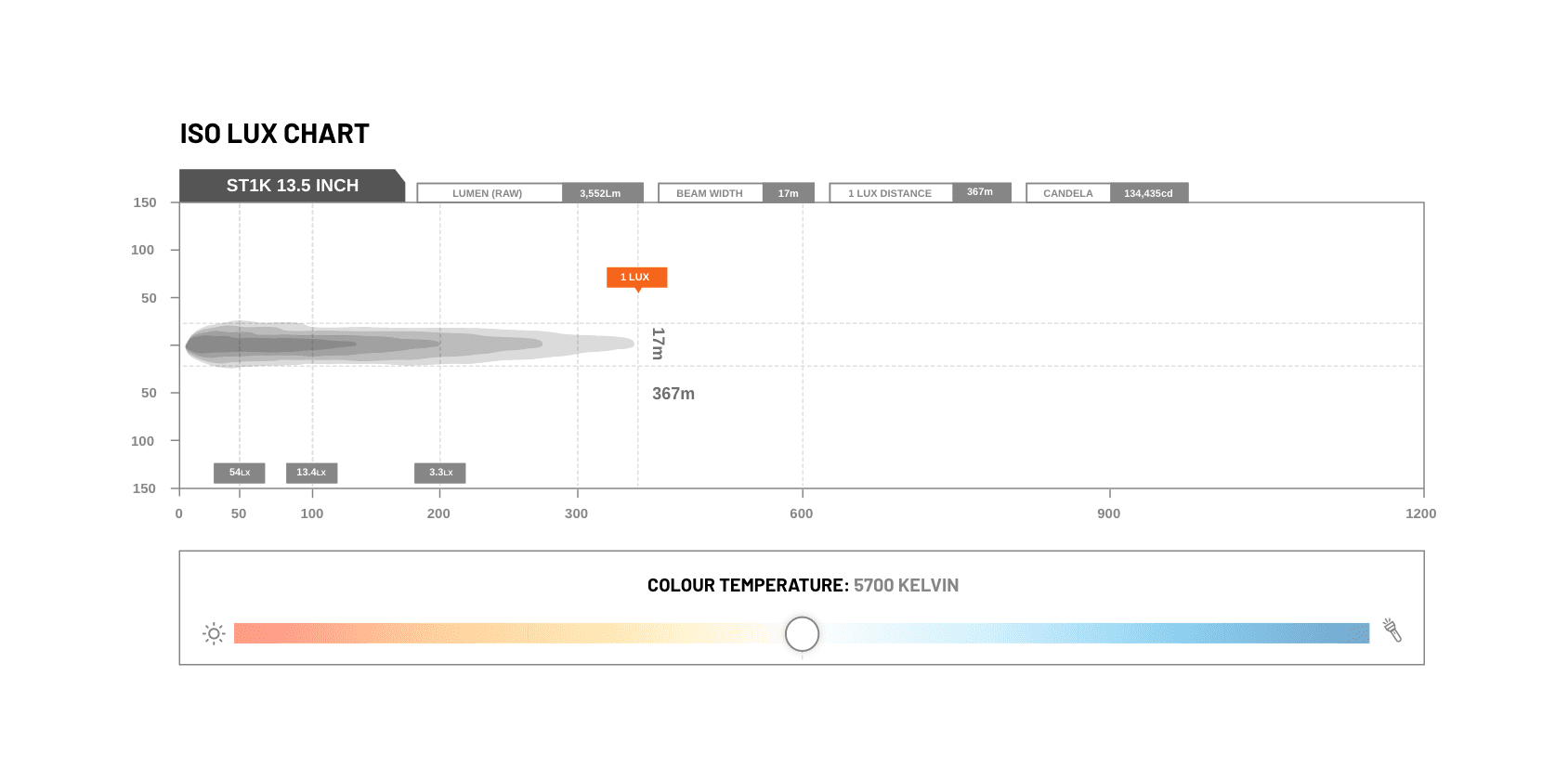

LUX GRAPH

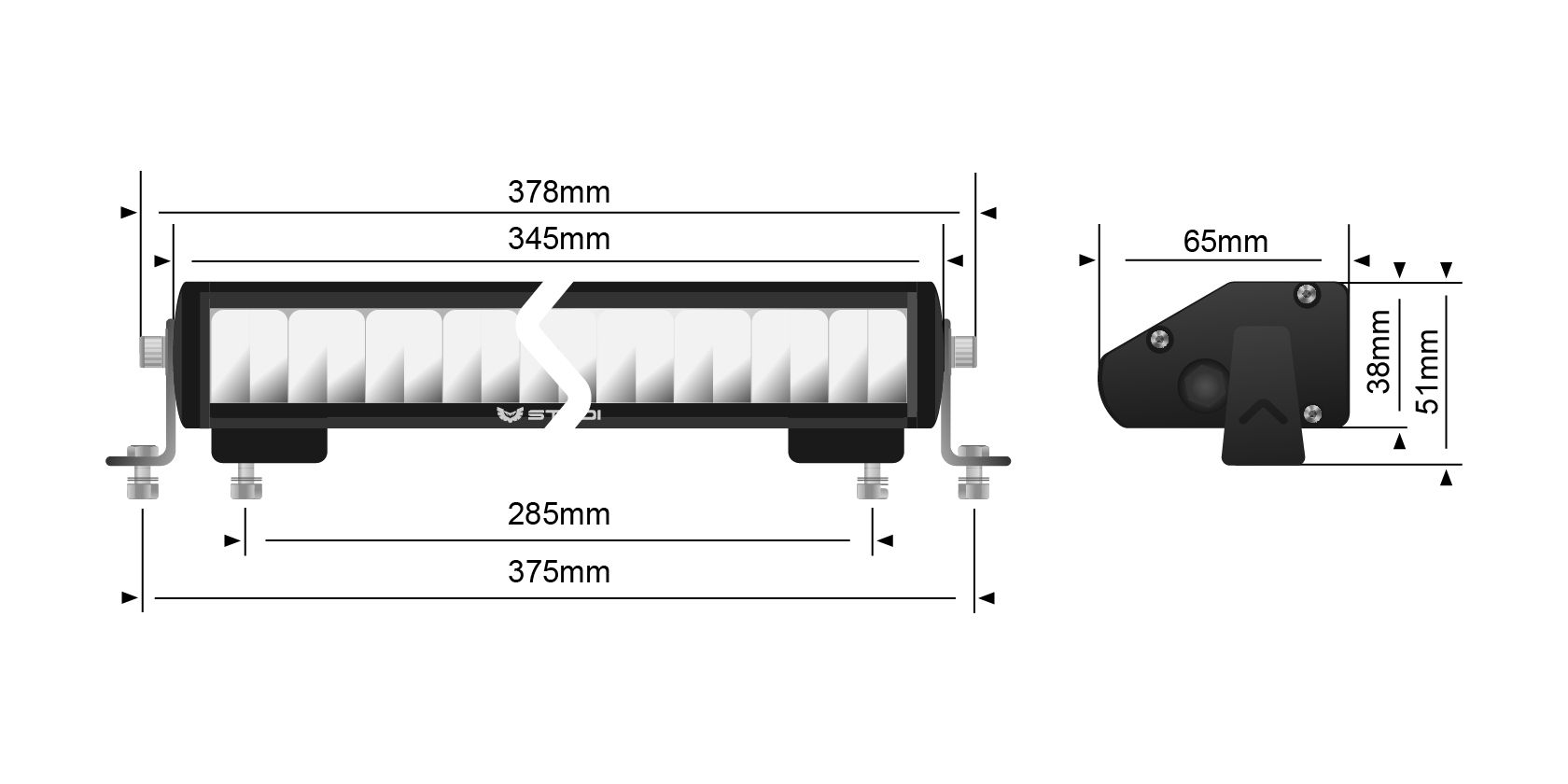

DIMENSIONS
THE NERDY STUFF
- 20 x 5W OSRAM LEDs
- RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
- IP68 – Submersible to 3m

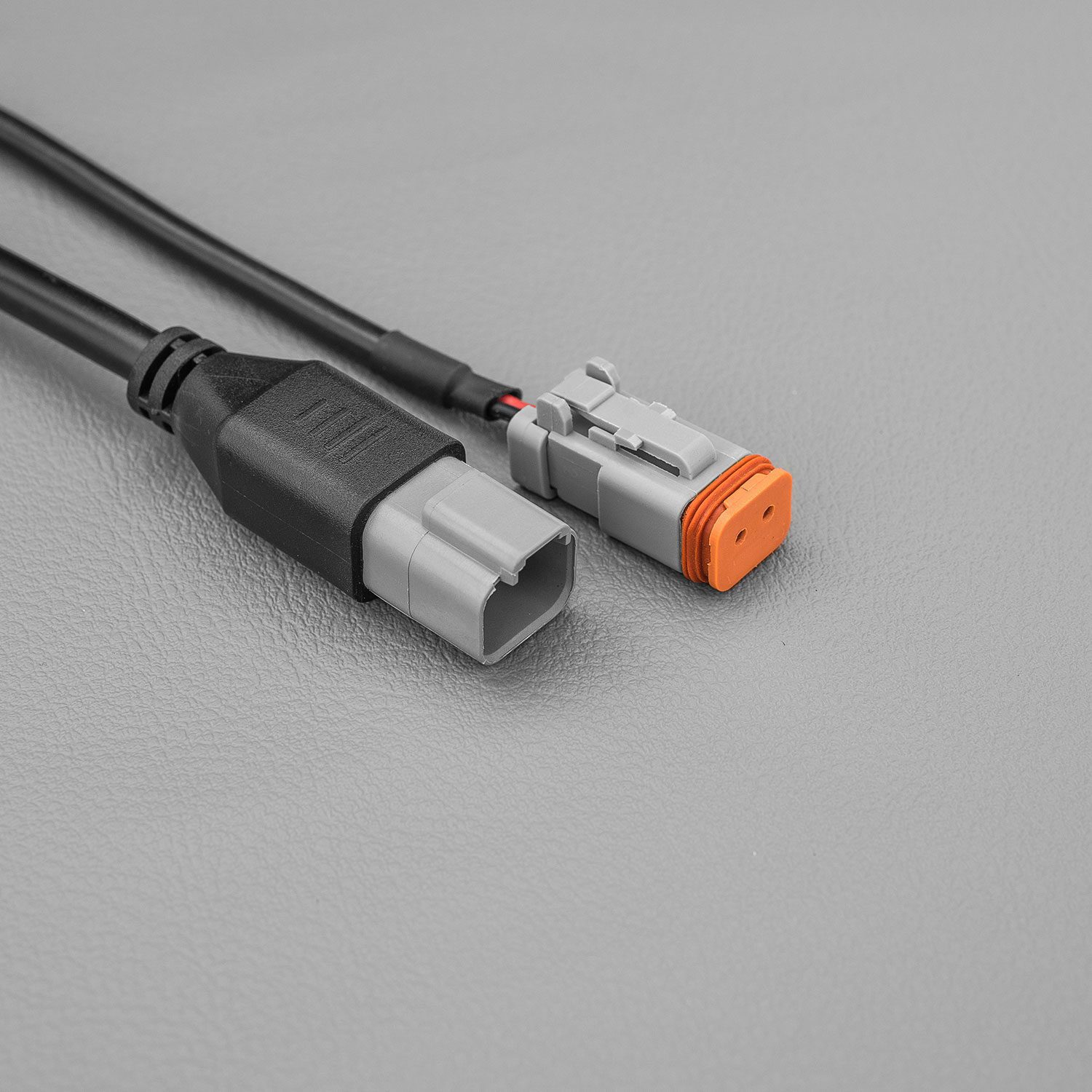

- Environmentally sealed Deutsch DT-2 connectors

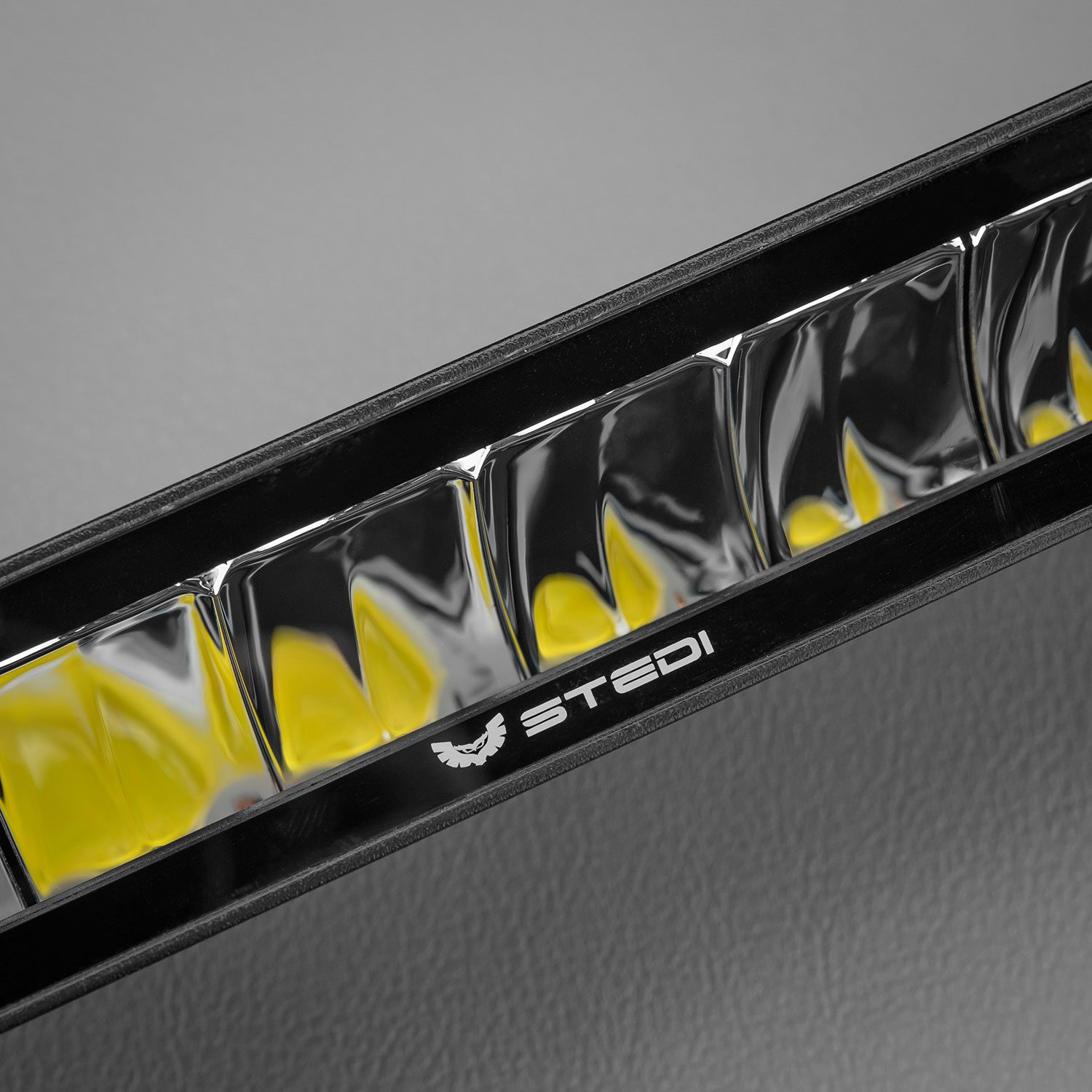

- Innovative hooded optics
- Driving Beam E mark compliant beam.

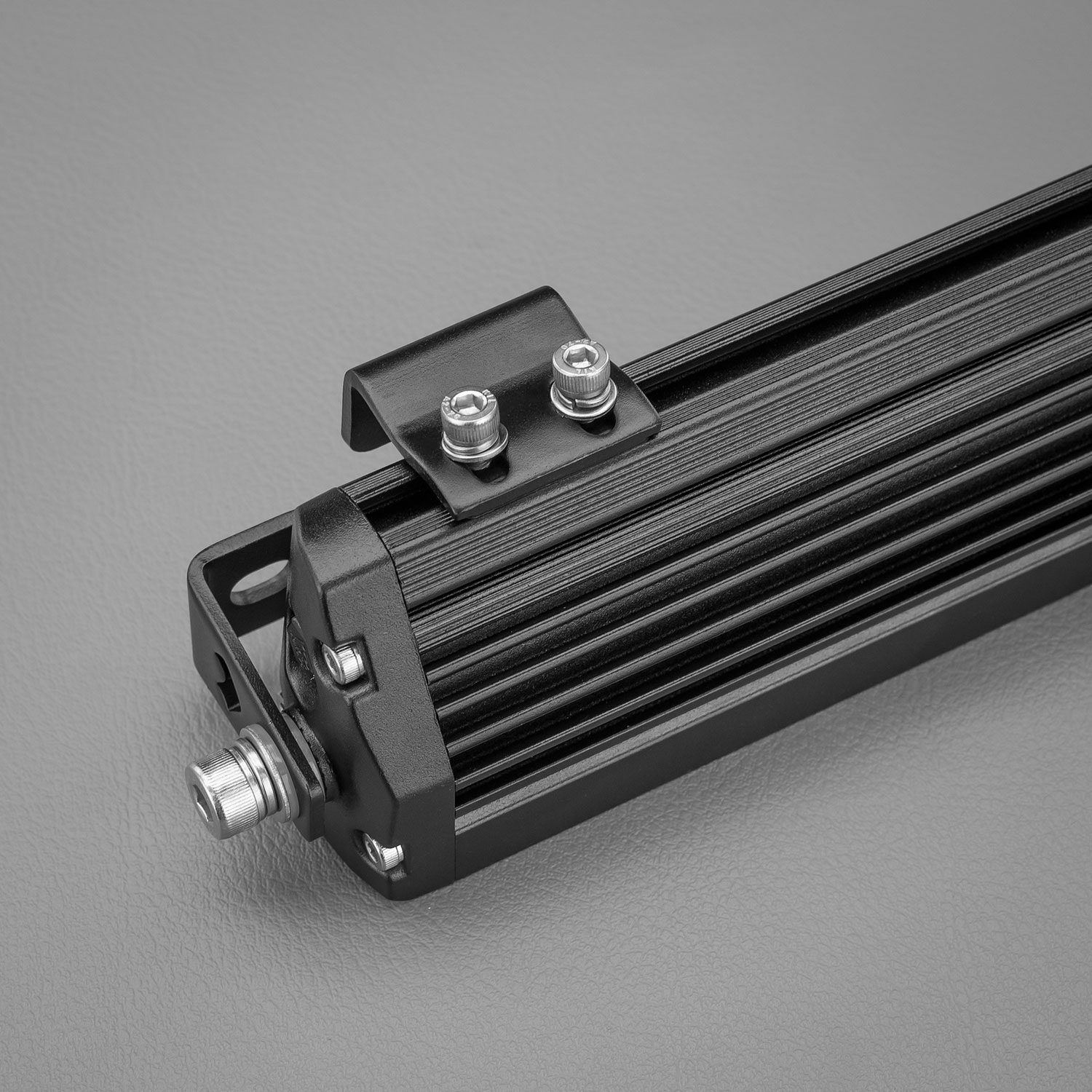

- Heavy Duty Adjustable Bottom Mounts & Side bracket included.
- Reverse Polarity Protected Circuit (RPPC)
- Electronic Thermal Management
- Built-in Voltage Surge Protection
TECH SPECS
| LED Manufacturer | OSRAM |
| LED COUNT | 12 |
| VOLTAGE | 9V – 32V |
| CURRENT DRAW (AMPERES) | 4.0a @13.6v |
| LENS MATERIAL | OPTICAL GRADE, HARD COATED LEXAN |
| RAW LUMENS | 3,552Lm |
| PEAK INTENSITY (CANDELA) | 134,435cd |

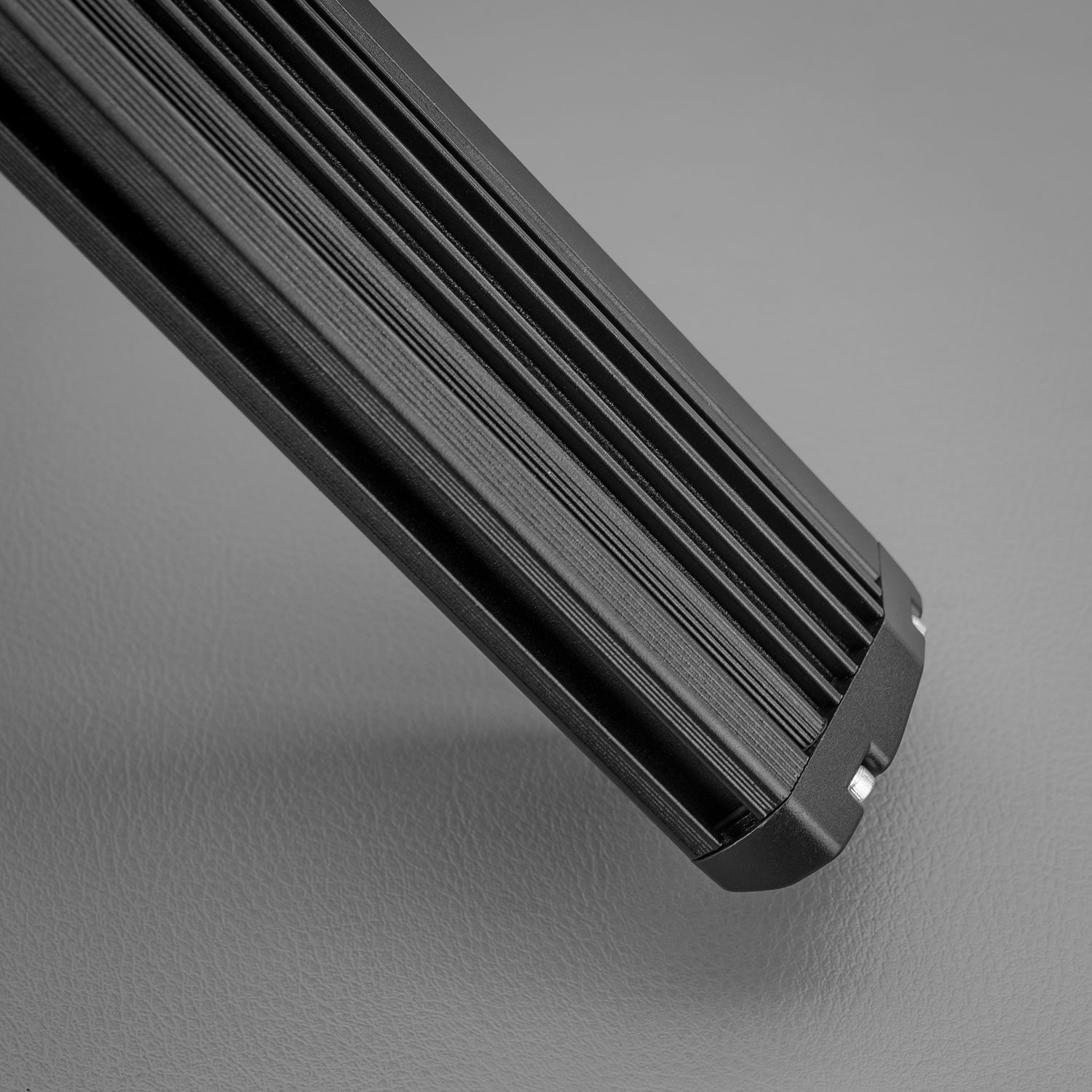

| HOUSING MATERIAL | A360.0 Cast face plate, extruded Aluminum heat sink |
| LIFESPAN | 50,000 |
| FLOOD BEAM | 50° |
| SPOT BEAM | 9° |
| INGRESS PROTECTION | IP68 |
| OPERATING TEMP | -40ËšC ~ +150ËšC |
| WEIGHT | 0.845kg |
WHAT’S INCLUDED
- ST1K 13.5 Inch LED Light Bar
- Installation Manual
Additional information
| Weight | 1.4 kg |
|---|---|
| Dimensions | 44 × 14 × 9 cm |
